HG2409PCR-RSP

Antennas RF Overview

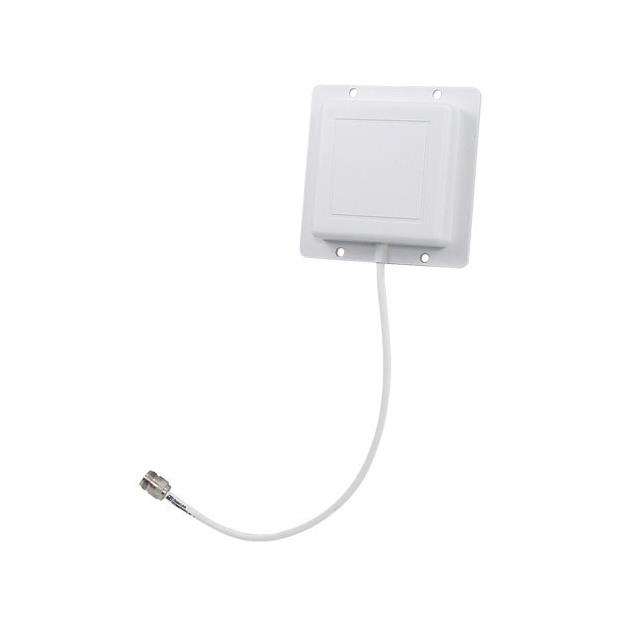

The L-Com HG2409PCR-RSP is a Right Hand Circular Polarized flat WiFi patch antenna operating in the 2.4 GHz ISM band. It provides 8 dBi gain with very broad coverage, suitable for IEEE 802.11b/g and Bluetooth applications. The unit features an RP-SMA plug connector and includes a 4ft cable length.

Antennas RF Feature Summary

• Compact flat design for Right Hand Circular Polarization
• Broad coverage capability within the 2.4 GHz frequency range
• Integrated RP-SMA plug connector interface

Antennas RF Applications

• IEEE 802.11b/g wireless LAN systems
• Bluetooth connectivity networks
• ISM band industrial applications

Antennas RF Procurement Notes

Verify the specific connector type matches system requirements, as this model utilizes an RP-SMA plug. Confirm that the 4ft cable length aligns with installation constraints. Ensure compatibility with Right Hand Circular Polarization standards required by the receiving equipment to maintain signal integrity.

Antennas RF Selection Notes

Select this component when Right Hand Circular Polarization is necessary for the 2.4 GHz band. The integrated 4ft cable simplifies installation compared to discrete antenna solutions. Consider the flat form factor for mounting constraints where traditional omnidirectional antennas are unsuitable.

Antennas RF Part Context

This model belongs to the HyperGain HG2409PCR series of compact flat WiFi patch antennas. The series is designed to provide high gain and broad coverage while maintaining a low profile. Variations within the series typically differ by connector type and cable length specifications.

Antennas RF Replacement Considerations

The HG2409PCR-NM serves as a substitute option featuring an SMA Male connector instead of the RP-SMA Plug found in this model. Verify connector compatibility before substitution.
