HG2409XP

Antennas RF Overview

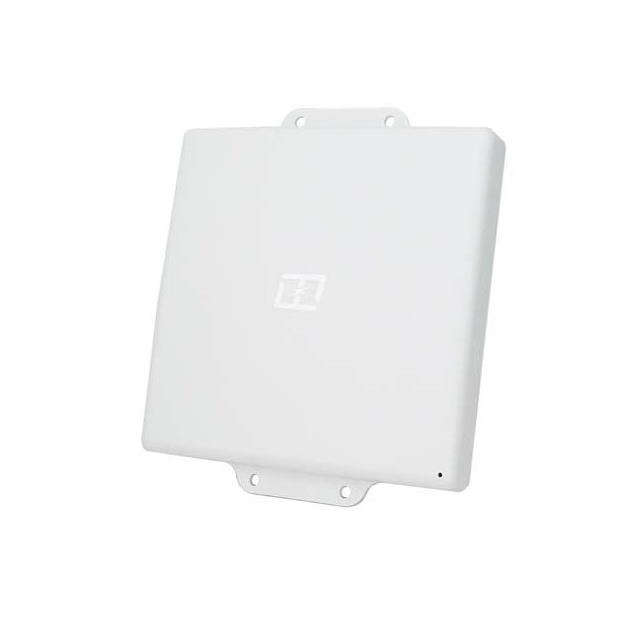

The L-com HG2409XP is a WLAN MIMO flat panel antenna operating within the 2.4 GHz to 2.5 GHz frequency range. It provides a gain of 9 dBi and features a 50-ohm impedance with N-type female connectors. Designed for high-performance applications, this unit integrates two independent cross-polarized internal antennas fed via dual connectors. The antenna supports 802.11b/g/n standards and utilizes a compact form factor suitable for various mounting configurations.

Antennas RF Feature Summary

• Integrates two independent cross-polarized internal antennas for enhanced signal handling
• Supports 802.11b/g/n WLAN standards for reliable wireless connectivity
• Features a compact flat panel design optimized for space-constrained installations

Antennas RF Applications

• WLAN network infrastructure deployment
• MIMO system integration
• Point-to-point or point-to-multipoint links

Antennas RF Procurement Notes

Verify connector type compatibility before purchase. Confirm that the N-type female interface matches existing cable assemblies. Ensure the 2.4–2.5 GHz operational range aligns with specific network requirements. Check mounting bracket availability if pole installation is planned. Validate environmental ratings for outdoor usage scenarios.

Antennas RF Selection Notes

Choose this model when dual-port cross-polarization is required for 2.4 GHz bands. Suitable for environments needing 9 dBi gain without excessive physical size. Ideal for upgrading existing WLAN setups requiring MIMO capabilities. Consider connector orientation and cable length needs during planning.

Antennas RF Part Context

This component belongs to L-com’s HyperLink series of RF antennas. It complements other models like the HG2417XP by offering lower gain but similar cross-polarized architecture. The product line focuses on professional-grade wireless solutions for diverse networking applications.

Antennas RF Replacement Considerations

Direct substitutes include other L-com 2.4 GHz cross-polarized flat panel antennas such as the HG2417XP, though gain differences exist. Verify connector types and mounting styles when swapping models. Ensure frequency ranges match exactly to maintain performance integrity.
