HG2412DPU

Antennas RF Overview

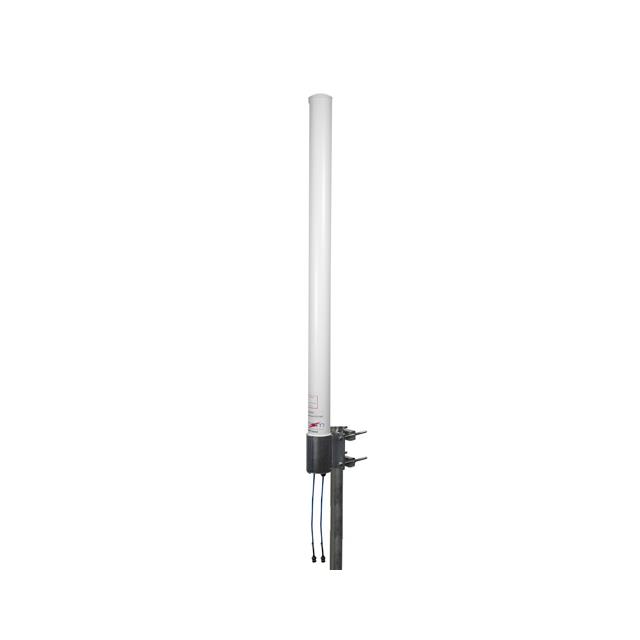

The L-com HG2412DPU is a passive MIMO omnidirectional antenna designed for wireless communication systems. It operates within the 2400-2500 MHz frequency range, supporting applications such as 4G, LTE, PCS, and MIMO 2x2 configurations. The component features a gain of 12 dBi to provide robust signal coverage. It is equipped with two N-type female connectors for interface connectivity.

Antennas RF Feature Summary

• Supports MIMO 2x2 architecture for enhanced data throughput
• Provides high gain for extended signal coverage
• Features dual N-type female connectors

Antennas RF Applications

• 4G cellular networks
• LTE communication systems
• PCS band operations
• MIMO 2x2 deployments

Antennas RF Procurement Notes

Verify part authenticity by checking manufacturer markings and documentation against official L-com records. Confirm connector type and frequency specifications match project requirements before purchase. Ensure compliance with regional regulatory standards for the specified frequency band.

Antennas RF Selection Notes

Select this model when dual-connector MIMO support is required in the 2400-2500 MHz range. Consider the 12 dBi gain for coverage needs. Verify compatibility with existing N-type interfaces. Evaluate environmental ratings if outdoor installation is planned.

Antennas RF Part Context

This antenna belongs to L-com's passive wireless product line. It complements their broader portfolio of industrial-grade wired and wireless connection solutions. The design focuses on reliable performance in multi-protocol communication environments.

Antennas RF Replacement Considerations

HG2412U-PRO: Features similar 12 dBi gain but includes a pigtail configuration instead of direct connectors.
