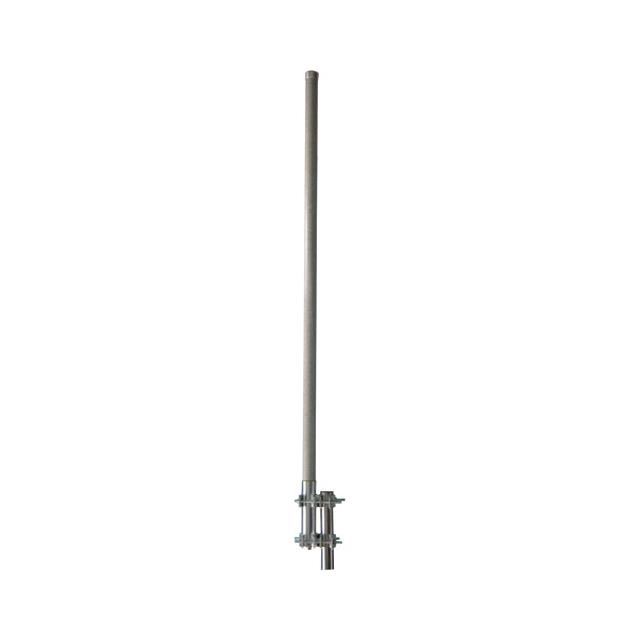

HG2412U-PRO

$138.23

Description：ANTOMNI 2.4GHZ 12DBI
Series：HG
Mfr：L-com
Package：Bag

SKU:00bc9a851876 Category: RF Antennas Brand: L-com

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：ANTOMNI 2.4GHZ 12DBI
Series：HG
Mfr：L-com
Package：Bag
RF Family/Standard：General ISM, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.45GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：1.5
Return Loss：-
Gain：12dBi
Features：-
Termination：N Type Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：57.874" (147.00cm)
Applications：802.11b/g/n, ISM
Power - Max：100 W

Download product information

HG2412U-PRO

Overview

The L-com HG2412U-PRO is a professional-grade omnidirectional antenna designed for the 2.4 GHz frequency band, specifically supporting IEEE 802.11b/g/n standards and ISM applications. It provides a gain of 12 dBi to enhance signal coverage in commercial installations. The unit features a straight N-type female connector and includes a 12-inch (30.5 cm) pigtail cable for flexible mounting. This antenna utilizes an omnidirectional radiation pattern to ensure consistent horizontal signal distribution.

Feature Summary

Omnidirectional radiation pattern for 360-degree horizontal coverage
High gain performance suitable for extended range requirements
Professional grade construction for commercial installation durability

Applications

Commercial wireless network infrastructure
802.11b/g/n Wi-Fi system deployments
ISM band communication links

Procurement Notes

Verify that the required connector type matches the N-female specification on the HG2412U-PRO. Confirm the 12-inch pigtail length meets cabling constraints. Ensure compatibility with 2.4 GHz operational bands. Check bracket mounting requirements against site specifications before finalizing procurement orders.

Selection Notes

Select this model when high gain omnidirectional coverage is required for commercial environments. The N-female interface suits standard coaxial connections. Consider the fixed 12-inch pigtail length during layout planning. This component is appropriate for 802.11b/g/n networks requiring robust signal propagation without directional focusing.

Part Context

The HG2412U-PRO belongs to the HyperLink series of antennas from L-com. It is categorized as a professional-grade RF component intended for reliable commercial use. The design focuses on providing stable omnidirectional performance within the 2.4 GHz spectrum, distinguishing it from lower-gain or directional alternatives in the broader product lineup.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing N-female interfaces if sourcing alternative models.
