HG2414P-NM

Overview

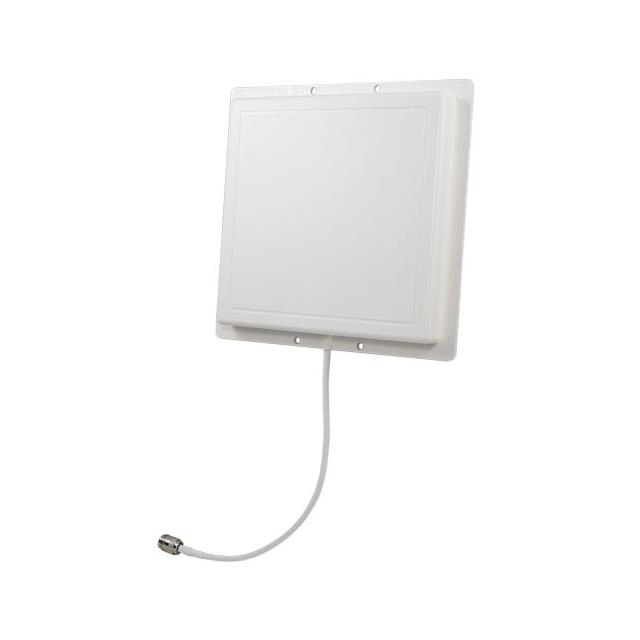

The HG2414P-NM is a high-performance directional flat patch antenna manufactured by L-com. It operates within the 2.4 GHz to 2.5 GHz frequency range, centered at 2.45 GHz, providing a gain of 14 dBi. The unit features an N-Male connector and supports protocols including 802.11b/g/n, Bluetooth, ISM, Wi-Fi, and WLAN. Key electrical specifications include a Voltage Standing Wave Ratio (VSWR) of 1.5 and a maximum power handling capacity of 25 W. The antenna has a square form factor with dimensions of 12 inches and a maximum height of 1.000 inch (25.40 mm).

Feature Summary

• High-gain directional radiation pattern optimized for point-to-point or point-to-multipoint links.
• Durable construction featuring UV-stable radome materials suitable for outdoor deployment.
• Integrated DC short lightning protection mechanism to safeguard connected equipment.
• Low-loss solid brass internal elements ensure efficient signal transmission.

Applications

• Indoor and outdoor wireless LAN infrastructure deployments.
• Bluetooth network connectivity extensions.
• Industrial, Scientific, and Medical (ISM) band communications.
• Wi-Fi bridge applications requiring high directivity.

Procurement Notes

Verify that the specific part number suffix matches the required connector type, as variations exist between N-Female, N-Male, and RP-TNC configurations. Confirm environmental ratings if outdoor installation is planned, ensuring compatibility with local weather conditions. Cross-reference the datasheet for precise mechanical mounting hole patterns to ensure integration with existing structural supports.

Selection Notes

Select this model when high directionality and substantial gain are required over omnidirectional alternatives. Consider the physical size constraints, as the 12-inch square profile requires adequate clearance. Ensure the host device interface aligns with the N-Male connector provided in this specific variant. Evaluate the 25 W power rating against system output capabilities to prevent component stress.

Part Context

This component belongs to the L-com HyperGain series, which specializes in high-performance flat panel antennas. The HG2414P-NM variant specifically denotes the inclusion of an integral N-Male connector, distinguishing it from other models in the HG2414P family that may utilize different interface types such as N-Female or RP-TNC plugs.

Replacement Considerations

Direct substitutes include the HG2414P-NF, which shares identical electrical performance but utilizes an N-Female connector. For applications requiring different mounting interfaces, the HG2414P-RTP offers similar gain characteristics with an RP-TNC plug connector. Verify connector gender compatibility before substitution.
