HMC-C004

Overview

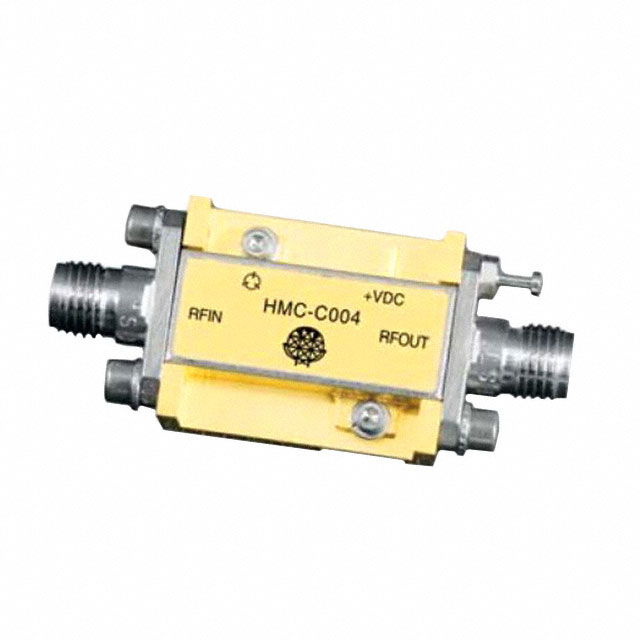

The HMC-C004 is a GaAs MMIC PHEMT distributed driver amplifier housed in a miniature, hermetic module with replaceable SMA connectors. It operates within a frequency range of 10 MHz to 20 GHz. The device provides 15 dB of gain and delivers an output power of 24 dBm. It functions as a self-biasing amplifier requiring an operating supply voltage of 12 V.

Feature Summary

• Integrated GaAs MMIC PHEMT technology for high-frequency performance
• Miniature hermetic module packaging ensuring environmental protection
• Replaceable SMA connectors facilitating flexible system integration

Applications

• VSAT communication systems
• RF signal distribution networks
• Broadband driver stages in test equipment

Procurement Notes

Verify the specific ordering suffix against Analog Devices documentation to confirm exact electrical characteristics and package variants. Ensure compatibility with 12 V supply requirements and thermal management needs for hermetic modules. Confirm availability status through authorized distributors as supply conditions may vary.

Selection Notes

Select this component when a wide bandwidth from 10 MHz to 20 GHz is required in a compact form factor. The hermetic design suits harsh environments where standard surface-mount packages are unsuitable. Consider the 12 V bias requirement and SMA connector interface for board layout planning.

Part Context

This part belongs to the HMC-C series of RF amplifiers from Analog Devices. It represents a specialized solution combining monolithic microwave integrated circuit technology with robust module packaging. The series targets applications demanding reliable performance across broad frequency ranges without sacrificing size constraints.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult official Analog Devices resources for potential cross-reference options or updated product line replacements.
