HMC-C007

Overview

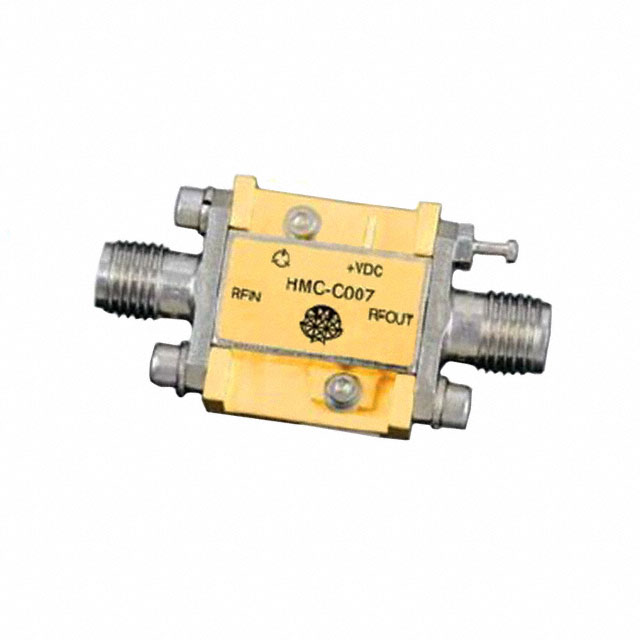

The HMC-C007 is a low-noise divide-by-8 static frequency divider designed for RF applications. It utilizes InGaP GaAs HBT technology and operates within an input frequency range of 0.5 to 18 GHz. The device is housed in a miniature, hermetic module package equipped with replaceable SMA connectors. It functions as a prescaler module suitable for PLL applications and requires a 5 V operating supply voltage.

Feature Summary

• Implements divide-by-8 static division using InGaP GaAs HBT technology
• Operates across a wide 0.5 to 18 GHz input frequency range
• Housed in a miniature hermetic module with replaceable SMA connectors

Applications

• VSAT systems
• PLL prescaler modules
• RF signal processing

Procurement Notes

Verify the specific part number against official Analog Devices documentation to confirm current status. Note that some distributor listings indicate this component may be obsolete or have limited availability. Ensure the required 5 V supply voltage and SMA connector compatibility match your system design requirements before procurement.

Selection Notes

Select the HMC-C007 when a wideband divide-by-8 solution is required for frequencies up to 18 GHz. Its hermetic packaging and SMA connectors make it suitable for environments requiring robust physical connections. Consider the 5 V supply requirement and verify if the static division characteristic meets the phase noise and jitter specifications of the target application.

Part Context

This component belongs to the Analog Devices RF IC and module portfolio, specifically categorized under RF miscellaneous devices. It serves as a specialized frequency divider utilizing heterojunction bipolar transistor technology, distinct from standard integrated circuit packages by its modular construction and external connector interface.

Replacement Considerations

Public sources indicate this part number may be obsolete. Verify current availability status directly with Analog Devices. No officially confirmed substitute part numbers are provided in the available documentation; consult manufacturer resources for potential replacements.
