Product Detailed Parameters
- Description：X2 ACTIVE MULT MODULE 32 - 46 GH
- Series：-
- Mfr：Analog Devices Inc.
- Package：Box
- Function：Frequency Multiplier
- Frequency：32GHz ~ 46GHz
- RF Type：VSAT
- Secondary Attributes：-
- Mounting Type：Connector Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview

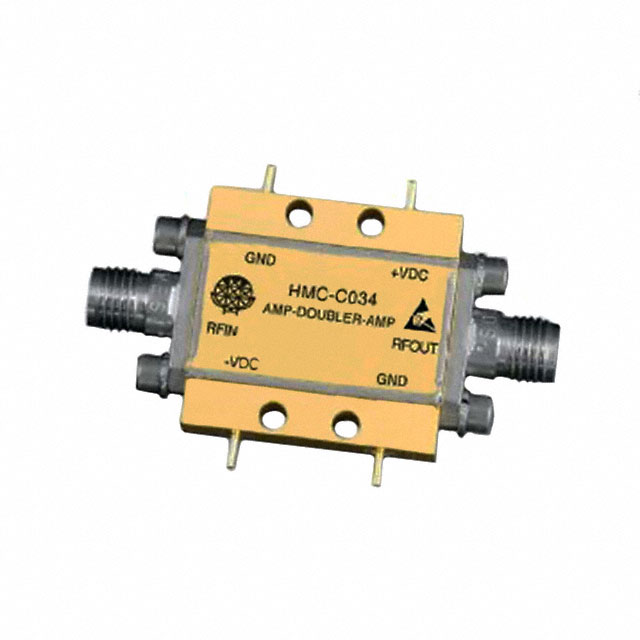

The HMC-C034 is an active broadband frequency multiplier utilizing GaAs PHEMT technology housed in a miniature hermetic module. It functions as a x2 multiplier, delivering a typical output power of +13 dBm when driven by a 3 dBm input signal. The operational frequency range spans from 32 GHz to 46 GHz. The device employs VSAT RF type specifications and utilizes connector mount installation with SMA connectors for integration.
Feature Summary
- Active broadband frequency multiplication using GaAs PHEMT technology
- Miniature hermetic module packaging for reliable operation
- SMA connector interface for direct mounting
Applications
- VSAT communication systems
- Microwave test and measurement equipment
- Point-to-point microwave links
Procurement Notes
Verify the specific package configuration and connector type against the official datasheet before procurement. Ensure that the driving source provides the required 3 dBm input level to achieve the specified +13 dBm output performance. Confirm environmental ratings and hermetic sealing requirements match the intended application constraints.
Selection Notes
Select this component when a wideband frequency doubling solution is required within the 32-46 GHz range. Consider the hermetic module form factor if environmental protection is critical. Evaluate the input drive power requirements carefully, as performance is dependent on a 3 dBm excitation signal. Compare against other multipliers regarding bandwidth and output power density.
Part Context
This component belongs to Analog Devices' portfolio of RF and microwave integrated circuits and modules. It is part of the broader category of frequency multipliers designed for high-frequency applications. The product line typically includes various MMICs and modules covering diverse frequency ranges and functionalities for wireless infrastructure.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing circuit designs if considering alternative vendors or models.
