HMC-C077

Overview

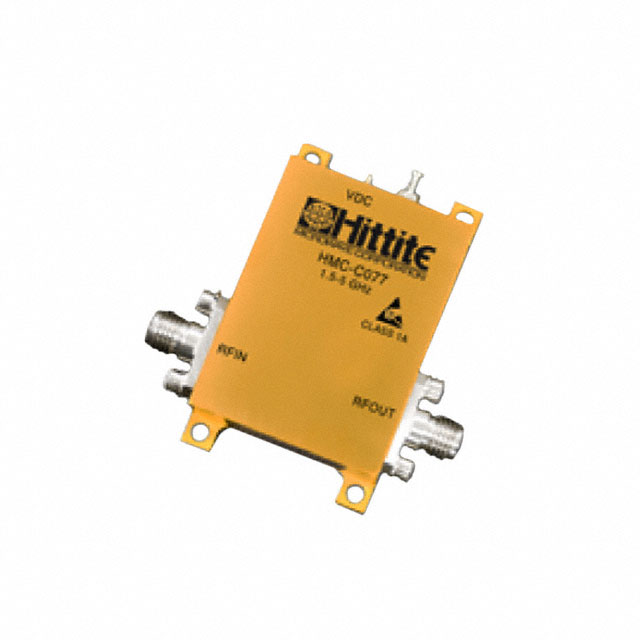

The HMC-C077 is a GaAs HBT ultra-low noise amplifier module designed for operation between 1.5 and 5 GHz. It provides 14 dB of gain with a 4.5 dB noise figure. The device operates at +22 dBm output power within a miniature, hermetic package.

Feature Summary

• Utilizes GaAs HBT technology for high dynamic range performance
• Enclosed in a miniature hermetic module for signal integrity

Applications

• VSAT systems
• Point-to-point microwave links
• Electronic warfare applications

Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required frequency ranges and pin configurations. Confirm that the hermetic seal meets environmental specifications for the intended deployment. Cross-reference the datasheet revision to validate electrical parameters against current design requirements before finalizing procurement orders.

Selection Notes

Select this component for designs requiring low noise figures in the 1.5 to 5 GHz band. Ensure the system can accommodate the 7 V supply voltage and 170 mA operating current. Consider the hermetic package size constraints when defining the PCB layout and thermal management strategy for the amplifier module.

Part Context

This part belongs to Analog Devices' portfolio of RF amplifiers utilizing GaAs HBT technology. It serves as a specialized solution for satellite communication and radar systems where low noise and high linearity are critical performance metrics across the specified microwave frequency range.

Replacement Considerations

No public confirmed substitute part numbers are available.
