HMC1087-SX
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters

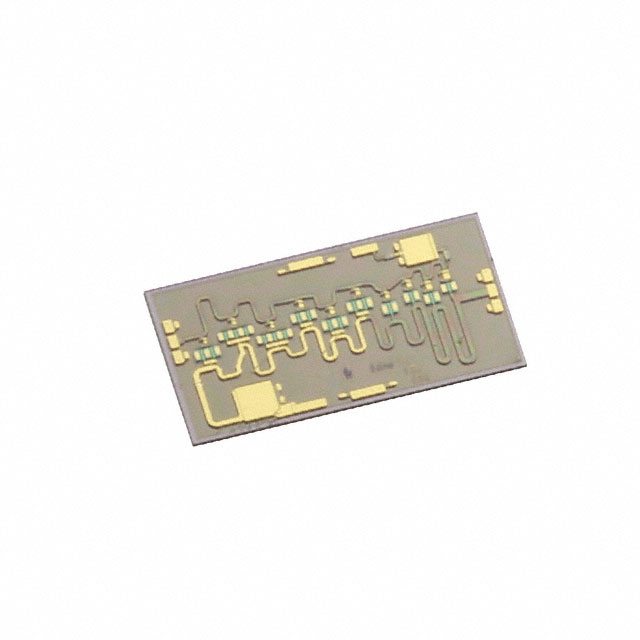

- Description：IC RF AMP RADAR 2GHZ-20GHZ DIE
- Series：-
- Mfr：Analog Devices Inc.
- Package：Tray
- Frequency：2GHz ~ 20GHz
- P1dB：-
- Gain：12dB
- Noise Figure：-
- RF Type：Radar
- Voltage - Supply：28V
- Current - Supply：850mA
- Test Frequency：20GHz
- Mounting Type：Surface Mount
- Package / Case：Die
- Supplier Device Package：Die
- Grade：-
- Qualification：-
Download product information
Overview
The HMC1087-SX is a GaN MMIC power amplifier from Analog Devices Inc., operating within the 2 GHz to 20 GHz frequency range. It features a supply voltage of 28V and a supply current of 850mA. The device delivers an output power of 6W (47.8 dBm) with a third-order intercept point (OIP3) of 43.5 dBm. It functions as a distributed power amplifier designed for high-frequency applications.
Feature Summary
- Utilizes Gallium Nitride (GaN) technology for robust performance
- Operates as a distributed power amplifier across a wide bandwidth
- Designed for surface mount integration in RF systems
Applications
- Radar systems
- Electronic warfare
- Test and measurement equipment
Procurement Notes
Verify component authenticity through authorized Analog Devices channels due to restricted availability status. Confirm that the -SX suffix denotes the die package variant suitable for custom substrate mounting. Ensure procurement partners provide valid traceability documentation to mitigate counterfeiting risks in high-reliability aerospace or defense contexts.
Selection Notes
Select this component when wideband coverage from 2 GHz to 20 GHz is required alongside high linear output power. Evaluate thermal management requirements carefully, as the 850mA supply current necessitates efficient heat dissipation strategies. Compare against lower-frequency alternatives if the application does not require Ka-band performance to optimize cost and complexity.
Part Context
This part belongs to the HMC1087 series of GaN MMICs. It serves as a high-power solution for microwave frequencies. The -SX designation indicates the bare die form factor, distinguishing it from packaged variants like the HMC1087F10. It complements other ADI RF components such as the HMC1093 for broader signal chain integration.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Designers should consult Analog Devices engineering support for qualified replacements or pin-compatible alternatives.
