HMC381LP6E

Overview

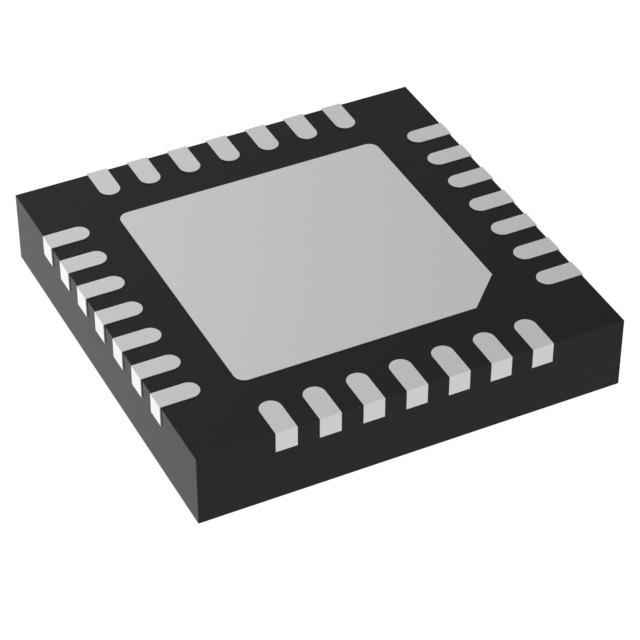

The HMC381LP6E is a high-performance, highly integrated dual downconverter receiver IC manufactured by Analog Devices Inc. It operates within the 1.7 GHz to 2.7 GHz frequency range, making it suitable for cellular and CDMA applications. The device delivers a +27 dBm input third-order intercept point (IP3), ensuring high linearity for robust signal processing. Packaged in a compact 28-QFN (6x6 mm) form factor, this component integrates essential functions into a single chip to simplify receiver design while maintaining superior RF performance metrics.

Feature Summary

• High linearity dual downconversion architecture
• Integrated receiver solution for simplified design
• Optimized for cellular and CDMA frequency bands

Applications

• UMTS receiver systems
• Cellular communication infrastructure
• CDMA mobile devices

Procurement Notes

Verify the specific package suffix and revision level against the manufacturer's current datasheet before procurement. Confirm that the intended application frequency aligns with the specified 1.7-2.7 GHz operational range. Ensure compatibility with existing board layouts regarding the 28-QFN footprint. Cross-reference part numbers with official Analog Devices documentation to avoid counterfeit or obsolete variants during sourcing.

Selection Notes

Select this component when high linearity is critical for handling strong interfering signals in dense RF environments. The integrated nature of the dual downconverter reduces external component count compared to discrete solutions. Consider the operating temperature range and power supply requirements relative to the system's thermal management capabilities. Evaluate the IP3 specification against the expected dynamic range requirements of the target application.

Part Context

This component belongs to the HMC381 series of high-linearity downconverters. It is designed to replace older, less integrated receiver architectures by consolidating multiple stages into a single IC. The LP6E designation indicates a specific lead-free packaging variant compliant with environmental standards. It serves as a key building block for modern wireless communication transceivers requiring precise frequency conversion.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify if the non-E version or other series members from the same manufacturer offer equivalent pinouts and electrical characteristics before considering alternatives.
