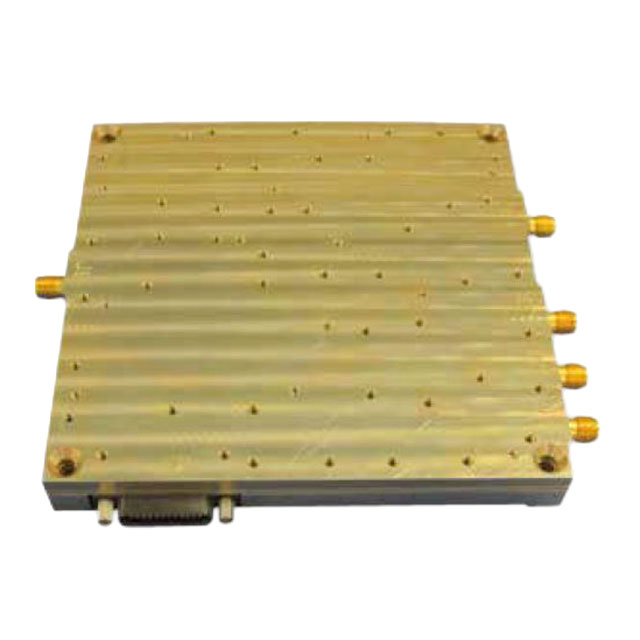

HMC7053

Overview

The HMC7053 is a fully integrated Ka-band block upconverter designed for single-carrier satellite communication equipment. It operates within the 29 GHz to 31 GHz output frequency range, covering both commercial and military bands. The device provides a linear output power ranging from -30 dBm to 5 dBm. It features dual-path input architecture with intermediate frequencies between 1 GHz and 2 GHz. At a typical conversion gain of 20 dB and an output level of 0 dBm, it achieves a spurious dynamic range performance of -60 dBc. The module supports digital gain control and includes thermal monitoring capabilities.

Feature Summary

• Dual-path upconversion design ensures phase coherence and optimizes spurious suppression performance
• Integrated thermal monitoring and gain compensation mechanisms maintain operational stability
• Supports digital gain control for flexible signal management in satellite link applications

Applications

• Single-carrier satellite communication systems
• Ka-band high-power amplifier front-end modules
• Military and commercial satellite ground stations

Procurement Notes

Verify that the specific order matches the HMC7053 part number rather than related components like the HMC7054 or HMC7056A. Confirm that the procurement documentation explicitly references the Analog Devices manufacturer. Ensure technical specifications align with the required 29-31 GHz frequency range and dual-input interface requirements before finalizing acquisition.

Selection Notes

Select this component when a fully integrated solution is required for Ka-band upconversion in satellite links. It is suitable for applications demanding high linearity and specific spurious dynamic range characteristics. Consider its dual-path architecture if phase coherence is critical. Verify compatibility with the system's intermediate frequency inputs and thermal management constraints.

Part Context

This device belongs to a family of Ka-band solutions introduced by Analog Devices for satellite communications. It complements other components such as the HMC7054 high-power amplifier. The series addresses the need for compact, high-performance modules that meet rigorous military environmental conditions while supporting standard commercial band operations.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. The HMC7056A is listed as a similar Ka-band block upconverter but integrates a high-power amplifier, which may alter system architecture requirements.
