HMC7545ABLP47E

Overview

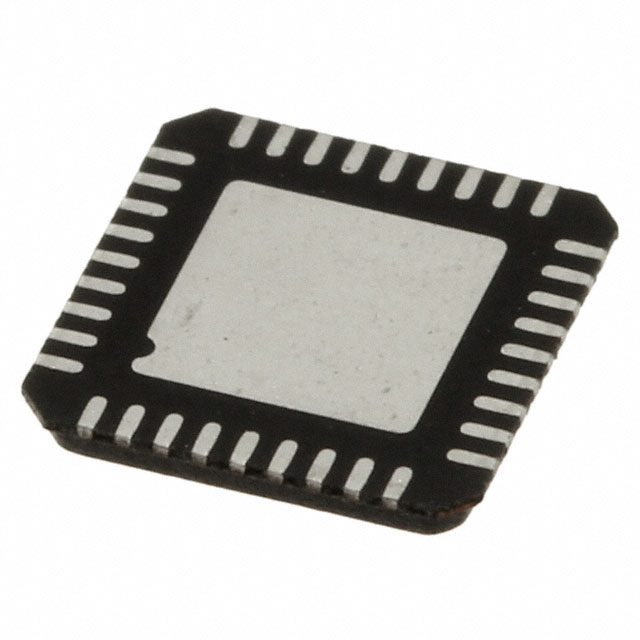

The HMC7545ABLP47E is a four-channel asynchronous signal conditioner manufactured by Analog Devices Inc. It operates within a temperature range of -40°C to +85°C and utilizes an LFCSP-36 surface-mount package. The device supports dual supply voltages of 2.5 V and 3.3 V, with minimum operating limits of 14.25 V and maximum limits of 15.75 V for specific configurations. It features a fixed attenuator type architecture designed for high-speed applications up to 14.2 Gbps.

Feature Summary

• Provides four independent channels for asynchronous signal conditioning
• Integrates fixed attenuation capabilities within a compact surface-mount footprint
• Designed for high-speed data transmission environments requiring precise signal management

Applications

• High-speed serial communication link signal conditioning
• Asynchronous data path level adjustment
• RF and microwave circuit signal integrity management
• Test and measurement equipment signal preprocessing

Procurement Notes

Verify component authenticity through authorized Analog Devices distributors or certified partners. Confirm the LFCSP-36 package marking matches official specifications. Check RoHS compliance documentation for environmental adherence. Ensure storage conditions respect humidity sensitivity levels specified in the datasheet. Validate that the obsolete status does not impact long-term project viability.

Selection Notes

Evaluate the requirement for four-channel asynchronous processing against alternative single-channel solutions. Consider the LFCSP-36 package constraints for PCB layout and thermal management. Assess compatibility with 2.5 V and 3.3 V logic levels. Review the 14.2 Gbps speed capability against system bandwidth requirements. Compare physical dimensions with existing board space limitations.

Part Context

This component belongs to the HMC7545 series of signal conditioners from Analog Devices. It is categorized under wireless and RF integrated circuits, specifically as a fixed attenuator. The part serves as a specialized solution for managing signal amplitude and integrity in high-frequency digital and analog hybrid systems.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Due to the obsolete product status, direct replacements may require design modifications or alternative component families from other manufacturers.
