HMC8074LP6GETR

Overview

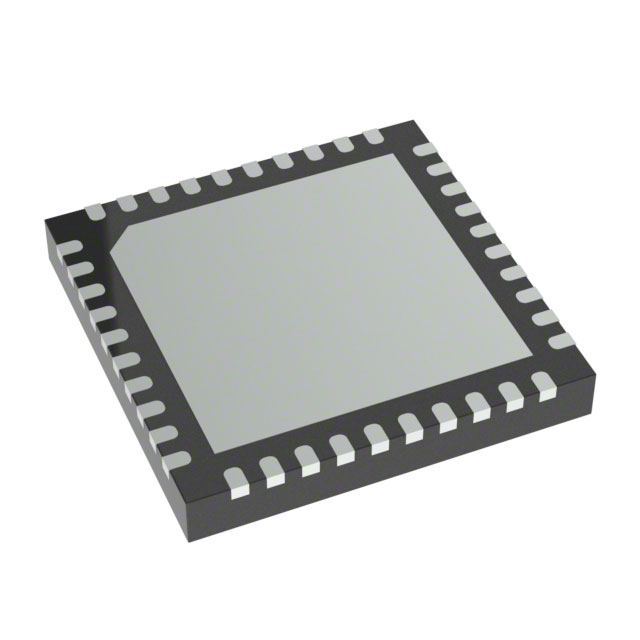

The HMC8074LP6GETR is a quadband monolithic microwave integrated circuit voltage-controlled oscillator (VCO) manufactured by Analog Devices Inc. It operates within the frequency range of 8.3 GHz to 15.2 GHz and utilizes a 40-VFQFN surface-mount package. The device requires a supply voltage between 4.5 V and 5.5 V, with a maximum current rating of 90 mA. Key performance specifications include phase noise levels ranging from -68 dBc/Hz to -76 dBc/Hz depending on the band, a tuning sensitivity of 200 MHz/V, and a pushing factor of 20 MHz/V.

Feature Summary

• Integrates four distinct frequency bands into a single MMIC solution for wideband coverage
• Provides high tuning sensitivity for precise frequency control applications
• Features low phase noise characteristics across its operational spectrum

Applications

• VSAT communication systems requiring wideband frequency generation
• Test and measurement equipment needing stable RF sources
• Military radar systems utilizing broad spectral coverage

Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels due to potential availability constraints. Confirm RoHS compliance status and specific lot codes against current datasheet revisions before integration. Ensure storage conditions adhere to moisture sensitivity level requirements to maintain solderability and long-term reliability in final assembly processes.

Selection Notes

Select this component when a single-chip solution covering 8.3 GHz to 15.2 GHz is required to minimize board space and complexity. Consider the 40-VFQFN package for surface mount compatibility and thermal management needs. Evaluate the 90 mA current draw against power budget constraints and ensure the 4.5 V to 5.5 V supply range aligns with system voltage rails.

Part Context

This part belongs to the HMC8074 series of quadband MMIC VCOs from Analog Devices. It is designed for high-performance RF applications where wide frequency agility is critical. The LP6 suffix indicates the specific lead-free packaging variant, while GETR denotes the tape and reel shipping configuration suitable for automated pick-and-place manufacturing lines.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
