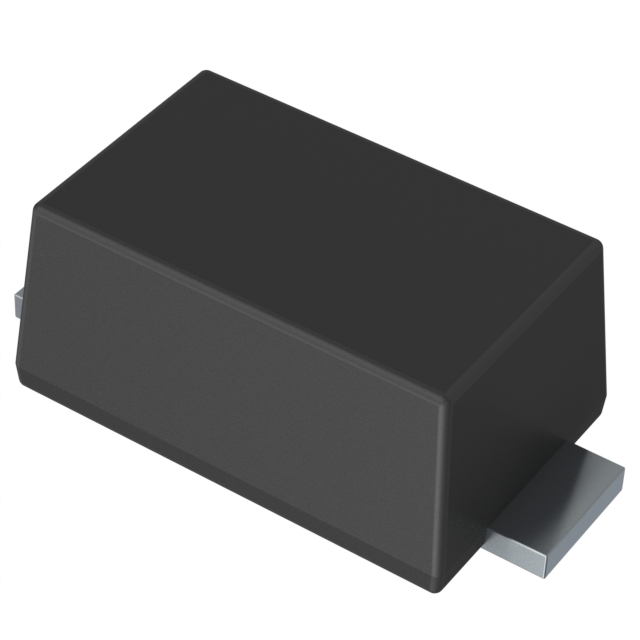

HS1FLH is listed in the Single Diodes range at ChipApex. The manufacturer field lists Taiwan Semiconductor Corporation. Its product description is DIODE STANDARD 300V 1A SUB SMA. Review the specifications below when checking this part for your BOM.
Single Diodes specifications for HS1FLH
- Description：DIODE STANDARD 300V 1A SUB SMA
- Series：-
- Mfr：Taiwan Semiconductor Corporation
- Package：Tape & Reel (TR)
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：300 V
- Current - Average Rectified (Io)：1A
- Voltage - Forward (Vf) (Max) @ If：950 mV @ 1 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：50 ns
- Current - Reverse Leakage @ Vr：5 µA @ 300 V
- Capacitance @ Vr, F：20pF @ 4V, 1MHz
- Mounting Type：Surface Mount
- Package / Case：SOD-123
- Supplier Device Package：Sub SMA
- Operating Temperature - Junction：-55°C ~ 150°C
- Grade：Automotive
- Qualification：AEC-Q101
Single Diodes datasheet and documents for HS1FLH
Single Diodes Overview
The HS1FLH is a high-speed switching diode manufactured by Taiwan Semiconductor Corporation. It belongs to the HS1 series, which utilizes Fast Recovery Epitaxial Diode (FRED) technology. This component is designed for applications requiring fast reverse recovery and low forward voltage drop. The device features a plastic encapsulate suitable for automated assembly processes.
Single Diodes Feature Summary
- Fast recovery epitaxial diode construction
- Low forward voltage characteristic
- High switching efficiency
- Plastic molded package
Single Diodes Applications
- High frequency rectification
- Free wheeling diodes
- Snubber circuits
- Inverter circuits
Single Diodes Procurement Notes
Verify the manufacturer marking and date code on the physical component to ensure authenticity. Confirm that the package type matches the required PCB footprint. Check for any specific handling instructions regarding electrostatic discharge during storage and installation.
Single Diodes Selection Notes
Select this component when fast reverse recovery time is critical for circuit performance. Ensure the peak repetitive reverse voltage and average forward current ratings exceed the maximum operating conditions of the target application. Consider thermal management requirements based on the power dissipation in the specific circuit design.
Single Diodes Part Context
This part is part of the HS1 series from Taiwan Semiconductor, focusing on high-speed switching applications. The series is engineered to replace slower standard recovery diodes in modern power electronics designs where efficiency and speed are paramount.
