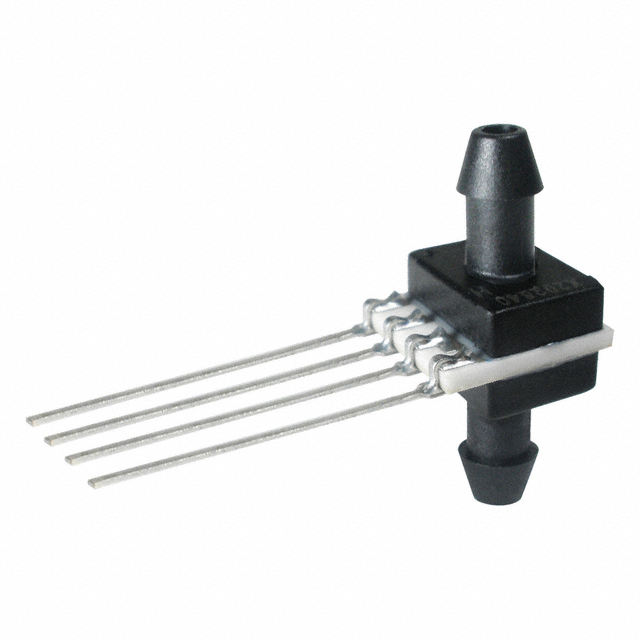

HSCSAAN010NDAA5

$43.10

Description：SENSOR 0.36PSID 0.19" 4.5V 4SIP
Series：TruStability® HSC
Mfr：Honeywell Sensing and Productivity Solutions
Package：Bulk

SKU:5d805aece903 Category: Pressure Sensors, Transducers Brand: Honeywell Sensing and Productivity Solutions

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HSCSAAN010NDAA5 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists Honeywell Sensing and Productivity Solutions. Its product description is SENSOR 0.36PSID 0.19" 4.5V 4SIP. Review the specifications below when checking this part for your BOM.

Pressure Sensors Transducers specifications for HSCSAAN010NDAA5

Description：SENSOR 0.36PSID 0.19" 4.5V 4SIP
Series：TruStability® HSC
Mfr：Honeywell Sensing and Productivity Solutions
Package：Bulk
Applications：Board Mount
Pressure Type：Differential
Operating Pressure：±0.36PSI (±2.49kPa)
Output Type：Analog Voltage
Output：0.5 V ~ 4.5 V
Accuracy：±0.25%
Voltage - Supply：4.95V ~ 5.05V
Port Size：Male - 0.19" (4.93mm) Tube, Dual
Port Style：Barbed
Features：Amplified Output, Temperature Compensated
Termination Style：PC Pin
Maximum Pressure：±12.65PSI (±87.21kPa)
Operating Temperature：-20°C ~ 85°C
Mounting Type：Through Hole
Package / Case：4-SIP, Dual Ports, Opposite Sides
Supplier Device Package：4-SIP
Grade：-
Qualification：-

Pressure Sensors Transducers datasheet and documents for HSCSAAN010NDAA5

HSCSAAN010NDAA5

Pressure Sensors Transducers Overview

HSCSAAN010NDAA5 is a differential pressure sensor from the TruStability HSC series. It features an analog voltage output ranging from 0.5V to 4.5V with a supply voltage of 4.95V to 5.05V. The device has a working pressure of ±0.36PSI (±2.49kPa) and a maximum pressure of ±12.65PSI (±87.21kPa). Accuracy is specified at ±0.25%. It utilizes a 4-SIP package with dual ports on opposite sides, designed for board mount applications via through-hole PC pins.

Pressure Sensors Transducers Feature Summary

Provides amplified analog voltage output
Includes integrated temperature compensation
Features dual ports located on opposite sides

Pressure Sensors Transducers Applications

Board mount installations

Pressure Sensors Transducers Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number HSCSAAN010NDAA5 with official Honeywell documentation. Confirm that the specific suffix matches the required port configuration and electrical specifications. Ensure the supplier provides valid traceability records and adheres to quality standards for active electronic components.

Pressure Sensors Transducers Selection Notes

Select this model when opposite-side porting is required for differential pressure measurement within the ±0.36PSI range. It is suitable for board-mounted designs requiring through-hole assembly. Consider the operating temperature range and accuracy requirements against application needs before finalizing the component choice.

Pressure Sensors Transducers Part Context

This component belongs to the TruStability HSC series of pressure sensors manufactured by Honeywell Sensing and Productivity Solutions. The series is characterized by high reliability and precision for industrial sensing applications. The HSCSAAN010NDAA5 variant specifically addresses configurations needing opposite-side port access while maintaining standard electrical interface parameters.
