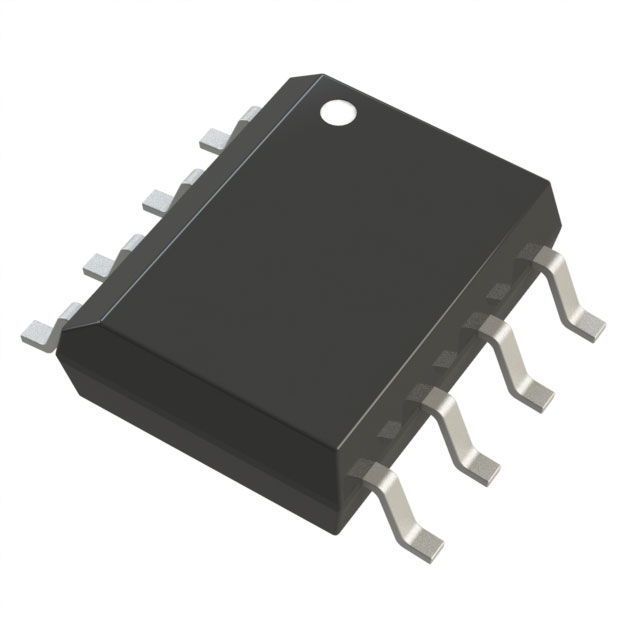

HUFA76413DK8T-F085P

Description：MOSFET 2N-CH 60V 5.1A 8SOIC
Series：-

SKU:7430f5d43838 Category: FET, MOSFET Arrays Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HUFA76413DK8T-F085P is listed in the FET, MOSFET Arrays range at ChipApex. The manufacturer field lists onsemi. Its product description is MOSFET 2N-CH 60V 5.1A 8SOIC. Review the specifications below when checking this part for your BOM.

FET, MOSFET Arrays specifications for HUFA76413DK8T-F085P

Description：MOSFET 2N-CH 60V 5.1A 8SOIC
Series：-
Mfr：onsemi
Package：Tape & Reel (TR)
Technology：MOSFET (Metal Oxide)
Configuration：2 N-Channel (Dual)
FET Feature：Logic Level Gate
Drain to Source Voltage (Vdss)：60V
Current - Continuous Drain (Id) @ 25°C：5.1A (Tc)
Rds On (Max) @ Id, Vgs：49mOhm @ 5.1A, 10V
Vgs(th) (Max) @ Id：3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：23nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds：620pF @ 25V
Power - Max：2.5W (Ta)
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Surface Mount
Package / Case：8-SOIC (0.154", 3.90mm Width)
Supplier Device Package：8-SOIC
Grade：Automotive
Qualification：AEC-Q101

FET, MOSFET Arrays datasheet and documents for HUFA76413DK8T-F085P

HUFA76413DK8T-F085P

FET, MOSFET Arrays Overview

The HUFA76413DK8T-F085P is a dual N-channel MOSFET from onsemi's UltraFET series, designed for high-efficiency switching applications. It features an automotive-grade qualification under AEC-Q101 standards and supports a maximum junction temperature of 150°C. The device utilizes an 8-SOIC surface-mount package with a width of 3.90mm. Power dissipation is rated at 2.5W, and it is supplied in reel packaging.

FET, MOSFET Arrays Feature Summary

Dual N-channel configuration within the UltraFET series for efficient switching
Automotive-grade reliability certified to AEC-Q101 standards
High thermal tolerance supporting a maximum junction temperature of 150°C

FET, MOSFET Arrays Applications

Automotive power switching circuits
High-efficiency DC-DC converter topologies
General-purpose low-voltage switching applications

FET, MOSFET Arrays Procurement Notes

Verify the specific suffix F085P against official documentation to confirm exact tape-and-reel specifications and marking details. Ensure compatibility with standard 8-SOIC footprint requirements during PCB layout. Confirm that the AEC-Q101 qualification meets the specific grade requirements for the target automotive application environment.

FET, MOSFET Arrays Selection Notes

Select this component when a dual N-channel MOSFET with automotive reliability is required. The 150°C junction temperature rating provides robust thermal performance compared to standard industrial grades. The compact 8-SOIC package suits space-constrained designs. Verify that the 2.5W power dissipation limit aligns with the thermal management strategy of the final system.

FET, MOSFET Arrays Part Context

This part belongs to onsemi's UltraFET series, which focuses on optimized power MOSFET technologies. The HUFA76413DK8T variant specifically targets automotive markets, ensuring durability under harsh operating conditions. The dual configuration allows for bridge or half-bridge implementations within a single small outline package.
