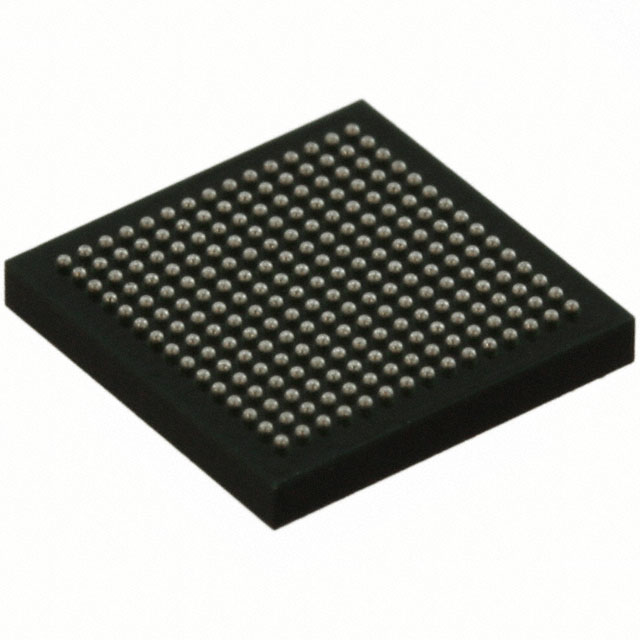

ICE40LP4K-CM225

Field Programmable Gate Array Overview

The iCE40LP4K-CM225 is a Field Programmable Gate Array from the Lattice Semiconductor iCE40 LP series. It features 7680 logic units and 960 logic blocks, with 7680 registers and 128 Kbit of embedded RAM. The device utilizes a UCBGA package with 225 pins, measuring 7 x 7 x 0.9 mm. It operates within a voltage range of 1.14 V to 1.26 V and supports temperatures from -40 °C to +85 °C.

Field Programmable Gate Array Feature Summary

• Non-volatile configuration memory for instant startup capabilities
• Ultra-low power consumption optimized for battery life extension
• Small form factor packaging suitable for space-constrained designs

Field Programmable Gate Array Applications

• SteamVR tracking systems requiring concurrent data capture and sensor processing
• Cost-sensitive glue logic and bridging applications in consumer electronics
• Smart connectivity solutions for mobile handheld devices

Field Programmable Gate Array Procurement Notes

Verify the specific ordering suffix against official Lattice documentation to confirm pinout and package variations. Ensure compatibility with design tools such as Lattice Diamond or Radiant. Confirm that the component meets environmental specifications for the intended operating temperature range before integration into final assemblies.

Field Programmable Gate Array Selection Notes

Select this model when 7680 logic units are required alongside 128 Kbit of embedded memory. The UCBGA-225 package is appropriate for designs needing extensive I/O density within a 7x7 mm footprint. Consider the LP series characteristics for applications prioritizing low static current over high-frequency performance found in HX variants.

Field Programmable Gate Array Part Context

This component belongs to the iCE40 LP family, designed for ultra-low density FPGA applications. It complements higher-density models like the LP8K and high-performance HX series. The LP series emphasizes minimal power usage and small physical dimensions, targeting cost-sensitive markets such as portable electronics and IoT sensors.

Field Programmable Gate Array Replacement Considerations

Direct substitutes include other iCE40 LP models with similar logic counts, such as the iCE40LP8K-CM225 for increased capacity. For lower resource requirements, the iCE40LP4K-HQ144 offers a different package option. Verify pin compatibility and software tool support when considering alternative packages within the same logic family.
