ICE40LP8K-CM225

Field Programmable Gate Array Overview

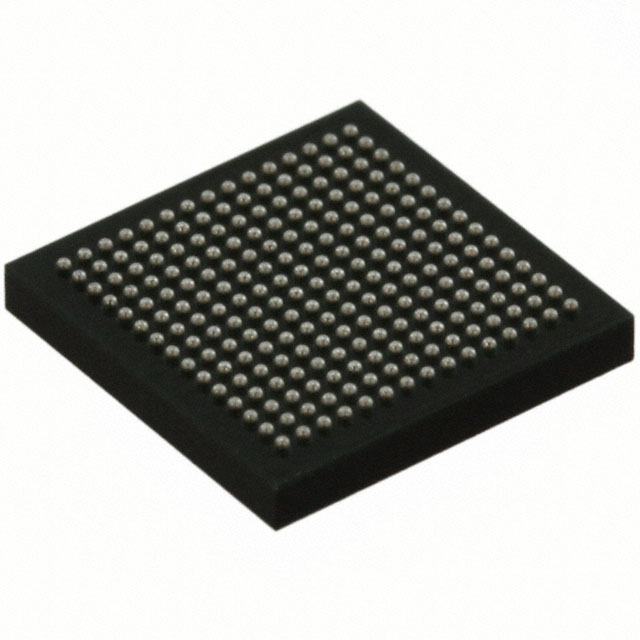

The iCE40LP8K-CM225 is a Field Programmable Gate Array (FPGA) belonging to the Lattice iCE40 LP series. It features 7680 logic elements and 960 Logic Array Blocks (LABs). The device includes 128 Kbit of embedded RAM bits. It operates within a supply voltage range of 1.14 V to 1.26 V and supports an operating temperature range from -40 °C to +85 °C. The component is housed in a 225-pin Ultra-Compact Ball Grid Array (UCBGA) package with dimensions of 7 mm x 7 mm x 0.9 mm.

Field Programmable Gate Array Feature Summary

• Non-volatile configuration memory enables instant startup capabilities.

Field Programmable Gate Array Applications

• Instant-on system control
• Flexible I/O expansion
• Glue logic implementation

Field Programmable Gate Array Procurement Notes

Verify the specific ordering suffix against the manufacturer's current documentation to ensure correct pinout and electrical specifications. Confirm that the UCBGA-225 package variant matches the design footprint requirements. Check for any recent lifecycle status updates or recommended replacement parts directly from Lattice Semiconductor official channels before finalizing procurement plans.

Field Programmable Gate Array Selection Notes

Select this model when 7680 logic resources are required within a compact 7x7mm form factor. Ensure the design accommodates the 1.2V core voltage domain and the specified thermal operating range. Verify that the 225-pin UCBGA package pitch aligns with the PCB layout constraints and assembly capabilities available for the production environment.

Field Programmable Gate Array Part Context

This component is part of the iCE40 LP family, designed for cost-sensitive and power-constrained applications. The LP series utilizes a 40nm process technology to deliver low static current consumption. It serves as a solution for portable devices and systems requiring small silicon area with non-volatile configuration storage.

Field Programmable Gate Array Replacement Considerations

Consult Lattice Semiconductor official documentation for verified cross-reference part numbers. Do not assume functional equivalence with other FPGA families without detailed parameter comparison.
