ICE40UL1K-SWG16ITR

Field Programmable Gate Array Overview

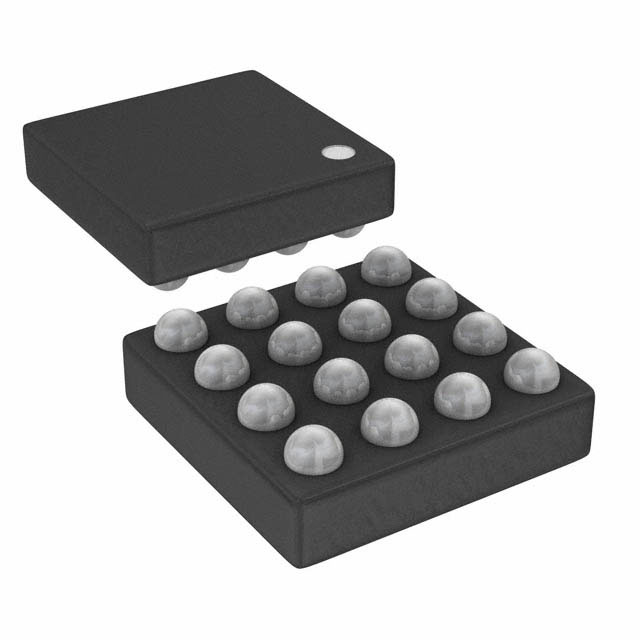

The ICE40UL1K-SWG16ITR is an ultra-low power FPGA from the iCE40 UltraLite family, fabricated on a 40 nm process. It features 1248 logic cells and 56 kbits of embedded block RAM within a 16-ball WLCSP package (1.409 mm x 1.409 mm). The device includes hardened interfaces such as two I2C controllers, one IR TX/RX pulse logic circuit, and RGB PWM IP. It supports LVCMOS 1.8V, 2.5V, and 3.3V standards with programmable pull-ups. Operating temperatures range from -40°C to +100°C.

Field Programmable Gate Array Feature Summary

• Ultra-small form factor suitable for space-constrained mobile applications
• Integrated high-current LED drivers for direct RGB, IR, and barcode control
• Instant-on capability via Nonvolatile Configuration Memory (NVCM)
• On-chip oscillators for low-power always-on functions

Field Programmable Gate Array Applications

• Smartphones and tablets
• Consumer handheld devices
• Multi-sensor management applications
• IR remote and barcode emulator implementations

Field Programmable Gate Array Procurement Notes

Verify the specific suffix 'ITR' against official Lattice documentation to confirm temperature grade and reel packaging specifications. Ensure design files match the 16-ball WLCSP footprint exactly. Confirm RoHS compliance status through the manufacturer's current product status page before finalizing procurement orders.

Field Programmable Gate Array Selection Notes

Select this model when 1248 logic cells are required in the smallest available package size. Compare against the ICE40UL640 if fewer resources suffice. Verify that the 10 programmable I/Os meet interface requirements. Check if the integrated NVCM eliminates the need for external configuration flash memory.

Field Programmable Gate Array Part Context

This component belongs to the iCE40 UltraLite family, designed specifically for ultra-low power mobile applications. It complements the broader iCE40 portfolio by offering instant-on capabilities and hardened sensor interfaces in a minimal footprint, targeting cost-sensitive consumer electronics markets.

Field Programmable Gate Array Replacement Considerations

The ICE40UL640-SWG16ITR serves as a lower-density alternative within the same package. Cross-referencing with other iCE40 UltraLite variants requires verifying pin compatibility and resource sufficiency.
