ICP-10100

Pressure Sensors Transducers Overview

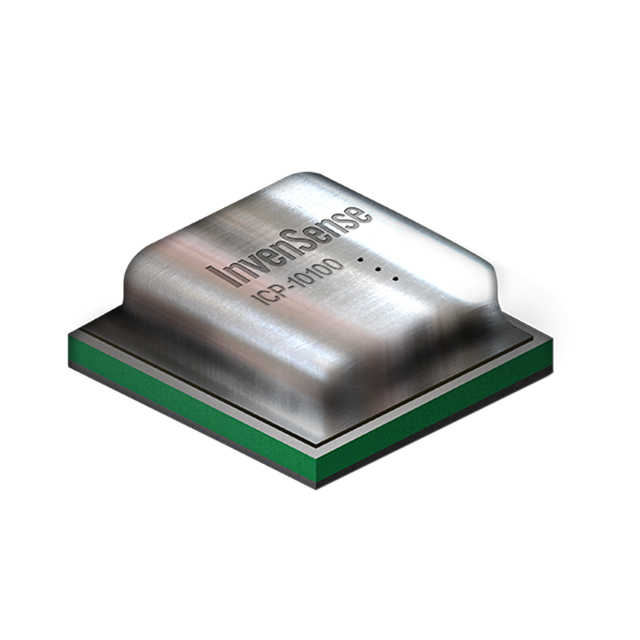

The ICP-10100 is a high-accuracy, low-power MEMS barometric pressure and temperature sensor IC manufactured by TDK InvenSense. It features an absolute pressure sensing range of 30 kPa to 110 kPa (4.35 PSI to 15.95 PSI) with a digital I2C interface. The device operates within a wide temperature range of -40°C to +85°C and is housed in a compact 10-WFLGA package. Designed for applications requiring precise altitude tracking and weather monitoring, it integrates signal conditioning and calibration data directly on the silicon die.

Pressure Sensors Transducers Feature Summary

• Integrates high-resolution MEMS pressure sensing with simultaneous temperature measurement capabilities
• Provides calibrated digital output via standard I2C communication protocol
• Features waterproof construction suitable for harsh environmental conditions
• Includes embedded calibration data for high accuracy across the operating temperature range

Pressure Sensors Transducers Applications

• Altitude tracking in wearable devices and smartphones
• Indoor navigation and floor detection systems
• Weather station and meteorological monitoring equipment
• Drone height stabilization and control systems

Pressure Sensors Transducers Procurement Notes

Verify component authenticity through authorized distributors as the part status is End-of-Life. Confirm package integrity and pin alignment against the 10-WFLGA specification before integration. Review the latest Product Change Notification for any manufacturing updates. Ensure supply chain sources provide valid traceability documentation to mitigate counterfeit risks during final assembly.

Pressure Sensors Transducers Selection Notes

Select this component when absolute pressure measurement within the 30-110 kPa range is required. Choose the ICP-10100 over differential sensors if atmospheric pressure reference is necessary. Consider the I2C interface compatibility with the host microcontroller. Evaluate the 10-WFLGA footprint constraints against available PCB space requirements.

Pressure Sensors Transducers Part Context

This sensor belongs to the SmartMotion series from TDK InvenSense, focusing on environmental sensing solutions. It complements other inertial measurement units by adding barometric data for enhanced positioning accuracy. The technology leverages mature MEMS fabrication processes to deliver reliable performance in consumer electronics and IoT applications.

Pressure Sensors Transducers Replacement Considerations

Public confirmed substitute part numbers are not available due to the End-of-Life status. Designers should evaluate alternative barometric sensors from current product lines that offer compatible I2C interfaces and similar pressure ranges.
