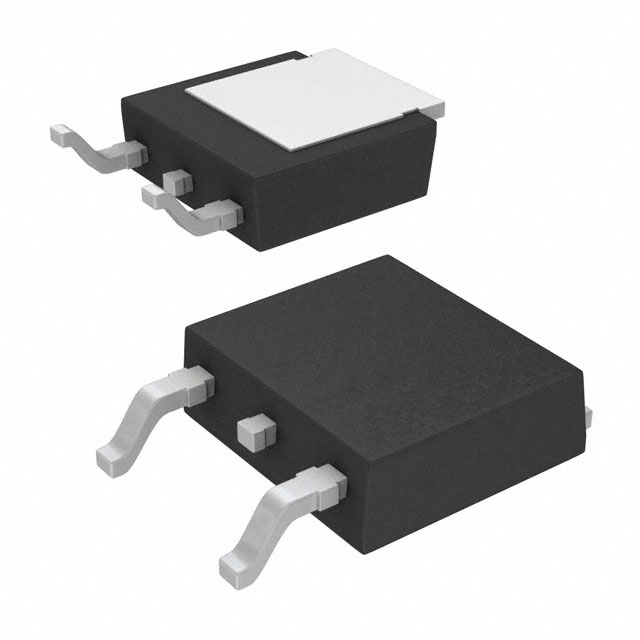

IDD06E60BUMA1 is listed in the Single Diodes range at ChipApex. The manufacturer field lists Infineon Technologies. Its product description is DIODE STD 600V 14.7A PGTO2523. Review the specifications below when checking this part for your BOM.
Single Diodes specifications for IDD06E60BUMA1
- Description：DIODE STD 600V 14.7A PGTO2523
- Series：-
- Mfr：Infineon Technologies
- Package：Tape & Reel (TR)
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：600 V
- Current - Average Rectified (Io)：14.7A
- Voltage - Forward (Vf) (Max) @ If：2 V @ 6 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：70 ns
- Current - Reverse Leakage @ Vr：50 µA @ 600 V
- Capacitance @ Vr, F：-
- Mounting Type：Surface Mount
- Package / Case：TO-252-3, DPAK (2 Leads + Tab), SC-63
- Supplier Device Package：PG-TO252-3
- Operating Temperature - Junction：-55°C ~ 175°C
- Grade：-
- Qualification：-
Single Diodes datasheet and documents for IDD06E60BUMA1
Single Diodes Overview
IDD06E60 is a fast switching EmCon diode rated for 600 V repetitive peak reverse voltage and 14.7 A continuous forward current at 25°C case temperature. It features a typical forward voltage of 1.5 V at 6 A and supports an operating junction temperature up to 175°C. The device exhibits a maximum reverse recovery time of 105 ns and a reverse recovery charge of 400 nC under specified test conditions.
Single Diodes Feature Summary
- EmCon technology enabling soft switching characteristics
- Low reverse recovery charge for reduced switching losses
- High thermal stability with 175°C operating capability
Single Diodes Applications
- High frequency power conversion circuits
- Fast switching rectification applications
- Automotive electronics requiring high reliability
Single Diodes Procurement Notes
Verify the specific ordering code against the datasheet to ensure correct package and tape-and-reel configuration. Confirm that the component meets automotive qualification standards if required by the design specifications. Check material content declarations for compliance with relevant environmental regulations before finalizing procurement.
Single Diodes Selection Notes
Select this component for designs requiring low reverse recovery charge and fast switching speeds. Ensure the thermal management solution can handle the specified power dissipation limits at the intended case temperatures. Verify that the circuit operates within the 600 V reverse voltage rating and does not exceed the surge current limits during transient events.
Single Diodes Part Context
This part belongs to Infineon's EmCon diode family, designed for high-speed switching applications. It utilizes advanced epitaxial growth technology to optimize the trade-off between forward voltage drop and reverse recovery performance. The TO-252 package provides efficient heat dissipation for surface-mount implementations.
Single Diodes Replacement Considerations
Consult official replacement guides for verified substitutes. Do not assume pin-compatible alternatives without verifying electrical parameters and thermal characteristics.
