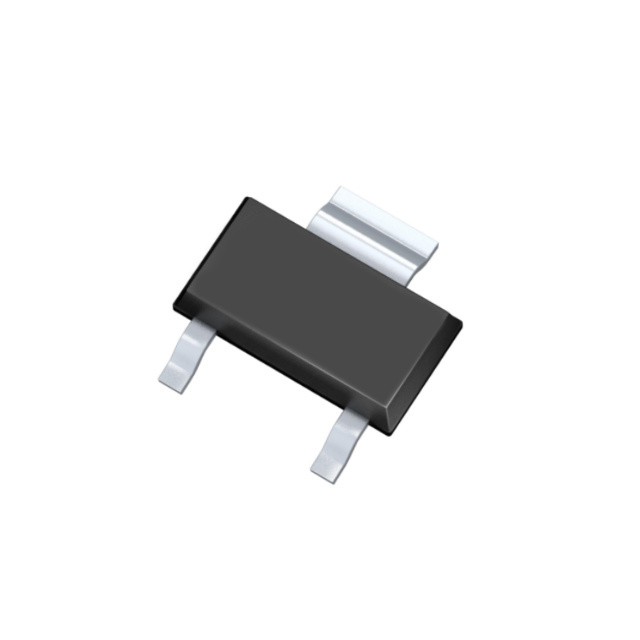

IKN03N60RC2ATMA1

$0.93

Description：IGBT 600V 5.7A SOT223-3
Series：-

SKU:d8dd93784b3c Category: Single IGBTs Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT 600V 5.7A SOT223-3
Series：-
Mfr：Infineon Technologies
Package：Tape & Reel (TR),Cut Tape (CT)
IGBT Type：-
Voltage - Collector Emitter Breakdown (Max)：600 V
Current - Collector (Ic) (Max)：5.7 A
Current - Collector Pulsed (Icm)：9:00 AM
Vce(on) (Max) @ Vge, Ic：2.3V @ 15V, 3A
Power - Max：6.3 W
Switching Energy：62µJ (on), 44µJ (off)
Input Type：Standard
Gate Charge：18 nC
Td (on/off) @ 25°C：7ns/77.5ns
Test Condition：400V, 3A, 49Ohm, 15V
Reverse Recovery Time (trr)：38 ns
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Surface Mount
Package / Case：TO-261-3
Supplier Device Package：PG-SOT223-3-1
Grade：-
Qualification：-

Download product information

IKN03N60RC2ATMA1

Overview

The IKN03N60RC2ATMA1 is a 600 V Reverse Conducting Drive 2 IGBT discrete device manufactured by Infineon Technologies. It features a monolithically integrated diode and operates within a junction temperature range of -40°C to 150°C. The collector-emitter voltage (VCE) is rated at 600 V, with a DC collector current (IC) of 5.7 A at 25°C and 3 A at 100°C. The gate charge (QG) is 18 nC, and the short-circuit withstand time is 3 µs. The component utilizes PG-SOT223-3 packaging.

Feature Summary

Monolithic integration of an IGBT and a reverse conducting diode within a single package
Humidity robust design for enhanced reliability
Short circuit capability of 3 µs under specified conditions
RoHS compliant with lead-free lead plating

Applications

Ceiling fans
Countertop appliances such as mixers
Kitchen hoods
Refrigerators
Residential air conditioning indoor units
Washing machines
General purpose drives (GPD)

Procurement Notes

Verify the specific ordering suffix ATMA1 against official documentation to confirm reel packaging specifications. Confirm that the component meets JEDEC industrial application validation standards. Ensure compatibility with wave soldering or reflow soldering processes up to 260°C. Check for moisture sensitivity level requirements during storage and handling.

Selection Notes

Select this component for applications requiring a compact solution combining switching and freewheeling functions. Evaluate thermal resistance values based on PCB footprint size, noting differences between minimum and 6 cm² Cu configurations. Consider the operating frequency range of 1 to 20 kHz when designing drive circuits. Verify gate resistor values to optimize switching energy losses.

Part Context

This part belongs to the Reverse Conducting Drive 2 series from Infineon Technologies. It is designed as a cost-effective alternative to discrete IGBT and diode combinations. The product spectrum includes PSpice models for simulation purposes. It is distinct from automotive qualified parts and is intended for industrial use.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult official Infineon resources for potential cross-references or updated series replacements.

FAQ

Is the IKN03N60RC2ATMA1 qualified for automotive applications?

No, the product is not qualified according to the AEC Q100 or AEC Q101 documents of the Automotive Electronics Council.

What is the maximum short-circuit withstand time?

The device has a short-circuit withstand time of 3 µs under conditions where VCC ≤ 400 V, VGE = 15 V, Tvj = 150 °C, and the allowed number of short circuits is less than 1000.
