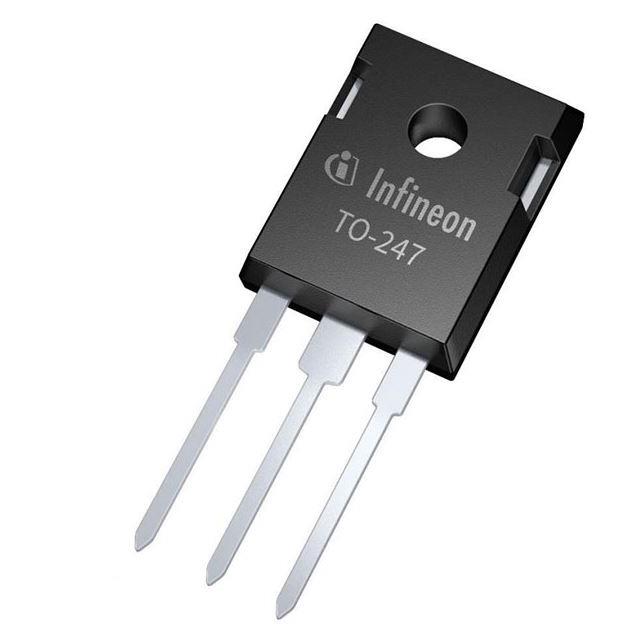

IKW75N120CH7XKSA1

$8.93

Description：IGBT TRENCH FS 1200V 92A TO247-3
Series：TRENCHSTOP™

SKU:8f8bb95fba76 Category: Single IGBTs Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT TRENCH FS 1200V 92A TO247-3
Series：TRENCHSTOP™
Mfr：Infineon Technologies
Package：Tube
IGBT Type：Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：92 A
Current - Collector Pulsed (Icm)：300 A
Vce(on) (Max) @ Vge, Ic：2.15V @ 15V, 75A
Power - Max：549 W
Switching Energy：4.22mJ (on), 1.66mJ (off)
Input Type：Standard
Gate Charge：535 nC
Td (on/off) @ 25°C：55ns/461ns
Test Condition：-
Reverse Recovery Time (trr)：145 ns
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Through Hole
Package / Case：TO-247-3
Supplier Device Package：PG-TO247-3-U06
Grade：-
Qualification：-

Download product information

IKW75N120CH7XKSA1

Overview

The IKW75N120CH7XKSA1 is a high-speed 1200 V TRENCHSTOP™ IGBT 7 Technology device co-packed with a full rated current, soft-commutating, ultra-fast recovery emitter controlled diode. It features a collector-emitter saturation voltage of 1.7 V at 25°C and operates up to a maximum junction temperature of 175°C. The component utilizes a PG-TO247-3 package.

Feature Summary

Best-in-class high speed IGBT co-packed with full rated current, low Qrr and soft-commutating high speed diode
Optimized for high efficiency in high speed hard switching topologies such as 2-L inverters, 3-L NPC T-type configurations
Easy paralleling capability due to positive temperature coefficient in VCEsat

Applications

Industrial UPS
EV-Charging
String inverter
Welding

Procurement Notes

Verify the specific ordering suffix against official Infineon documentation to confirm exact packaging and marking details. Ensure compliance with JEDEC47/20/22 industrial application standards during integration. Confirm RoHS compliance status through manufacturer certificates prior to procurement.

Selection Notes

Select this component for applications requiring high efficiency in high-speed hard switching topologies. Consider the positive temperature coefficient for parallel operation requirements. Evaluate thermal management needs based on the specified junction-to-case thermal resistance values provided in the datasheet.

Part Context

This part belongs to the TRENCHSTOP™ IGBT 7 family from Infineon Technologies. It represents an evolution in power semiconductor technology designed for improved switching performance and reduced losses compared to previous generations.

Replacement Considerations

Consult official Infineon cross-reference guides for verified substitutes. Do not assume compatibility with other IGBT families without verifying pinout, electrical ratings, and thermal characteristics.
