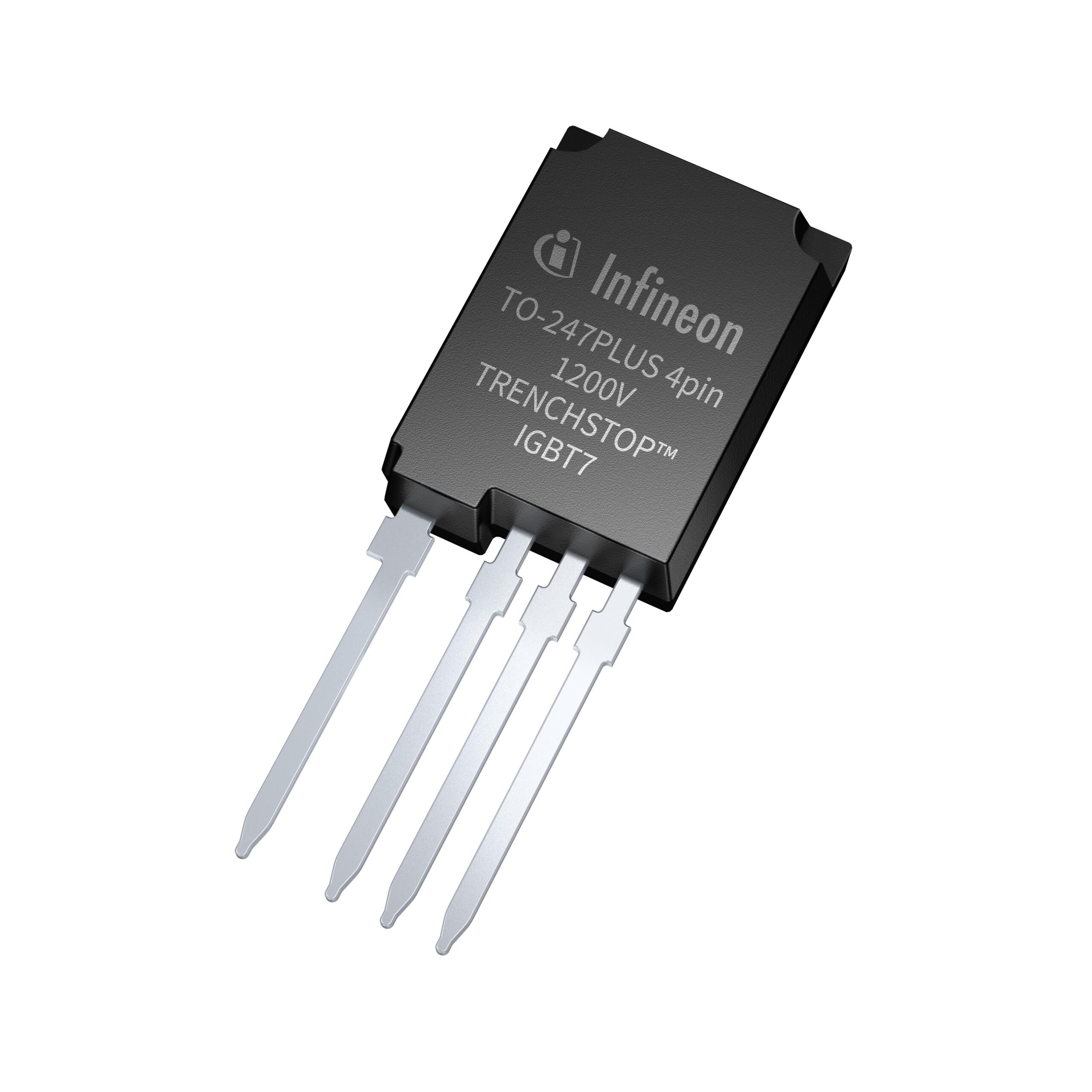

IKY100N120CH7XKSA1

$11.87

Description：IGBT TRENCH FS 1200V 212A TO247
Series：TRENCHSTOP™

SKU:7a8aeb088a7f Category: Single IGBTs Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT TRENCH FS 1200V 212A TO247
Series：TRENCHSTOP™
Mfr：Infineon Technologies
Package：Tube
IGBT Type：Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：212 A
Current - Collector Pulsed (Icm)：400 A
Vce(on) (Max) @ Vge, Ic：2.15V @ 15V, 100A
Power - Max：721 W
Switching Energy：2.37mJ (on), 2.65mJ (off)
Input Type：Standard
Gate Charge：714 nC
Td (on/off) @ 25°C：44ns/359ns
Test Condition：-
Reverse Recovery Time (trr)：99 ns
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Through Hole
Package / Case：TO-247-4
Supplier Device Package：PG-TO247-4-U10
Grade：-
Qualification：-

Download product information

IKY100N120CH7XKSA1

Overview

The IKY100N120CH7XKSA1 is a high-speed IGBT with an integrated emitter-controlled diode, utilizing TRENCHSTOP™ IGBT 7 technology. It features a collector-emitter voltage of 1200 V and a continuous collector current of 100 A at 25°C (limited by junction temperature). The device operates within a junction temperature range of -40°C to 175°C. Key electrical parameters include a saturation voltage of 1.7 V at 25°C and a gate charge of 714 nC. The diode exhibits a forward voltage of 2.5 V and a reverse recovery charge of 3.09 µC.

Feature Summary

Co-packed full rated current soft-commutating ultra-fast recovery diode
Optimized for high efficiency in high speed hard switching topologies
Easy paralleling capability due to positive temperature coefficient in VCEsat

Applications

Industrial UPS
EV-Charging
String inverter
Welding

Procurement Notes

Verify the specific ordering suffix against official Infineon documentation to confirm package type and compliance status. Confirm that the component meets industrial application requirements as per JEDEC standards. Ensure design margins do not exceed 80% of maximum ratings for optimal reliability. Check for RoHS compliance and Pb-free lead plating specifications before procurement.

Selection Notes

Select this component for applications requiring high-speed hard switching capabilities. The positive temperature coefficient facilitates easy paralleling for higher current demands. Consider the thermal resistance values when designing heat dissipation systems. Evaluate the low Qrr characteristics for minimizing switching losses in high-frequency operations.

Part Context

This part belongs to the TRENCHSTOP™ IGBT 7 family from Infineon Technologies. It is housed in a PG-TO247-4-PLUS package. The product is qualified for industrial applications according to relevant JEDEC tests. It is distinct from automotive-qualified parts as it does not meet AEC-Q100 or AEC-Q101 standards.
