IL5

Transistor, Photovoltaic Output Optoisolators Overview

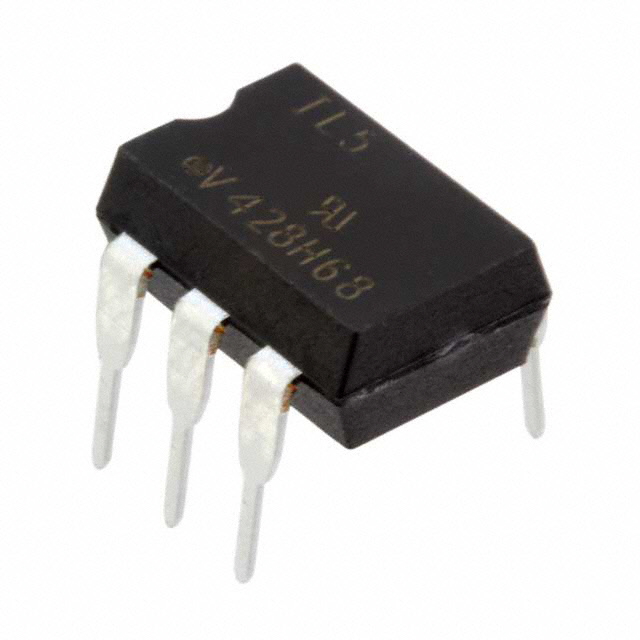

The IL5 is a single-channel optoisolator manufactured by Vishay Semiconductor Opto Division, featuring a transistor output with base access. It provides an isolation voltage of 5300Vrms and operates within a temperature range of -55°C to 100°C. The device utilizes a 6-DIP package for through-hole mounting. Key electrical parameters include a maximum DC forward current (If) of 60 mA, a typical forward voltage (Vf) of 1.2 V, and a collector-emitter saturation voltage (Vce(sat)) of 400 mV maximum. The minimum current transfer ratio is 100% at 10 mA input.

Transistor, Photovoltaic Output Optoisolators Feature Summary

• Provides high-voltage isolation capability suitable for demanding industrial environments
• Integrates a phototransistor output with accessible base terminal for enhanced control flexibility
• Supports both AC and DC input signal types for versatile application compatibility

Transistor, Photovoltaic Output Optoisolators Applications

• Industrial process control systems requiring galvanic isolation
• Power supply feedback loops for noise reduction
• Microprocessor interface circuits for signal level shifting

Transistor, Photovoltaic Output Optoisolators Procurement Notes

Verify the specific suffix designation against the manufacturer's official documentation to ensure correct packaging and variant selection. Confirm that the procurement source provides valid traceability records and compliance certificates matching the component's RoHS status. Cross-reference the ordering information with the latest datasheet revisions to avoid discrepancies in pinout or electrical specifications during integration.

Transistor, Photovoltaic Output Optoisolators Selection Notes

Select this component when a base-accessible transistor output is required for precise gain control or switching speed adjustment. Ensure the system design accommodates the specified isolation voltage rating and operating temperature range. Evaluate the current transfer ratio requirements against the intended drive conditions to guarantee reliable signal transmission across the isolation barrier without exceeding maximum ratings.

Transistor, Photovoltaic Output Optoisolators Part Context

The IL5 belongs to the broader family of Vishay optoisolators designed for general-purpose isolation applications. It shares architectural similarities with other devices in the series but is distinguished by its specific package configuration and base-terminal availability. This component serves as a fundamental building block for creating electrically isolated signal paths in electronic circuits where safety and noise immunity are critical.

Transistor, Photovoltaic Output Optoisolators Replacement Considerations

Publicly confirmed substitute part numbers include H11AA1 from Isocom Components and H11AA1SR2VM from onsemi. Verify mechanical footprint compatibility and electrical parameter alignment before substitution.
