IM241S6S1JAUMA1

Overview

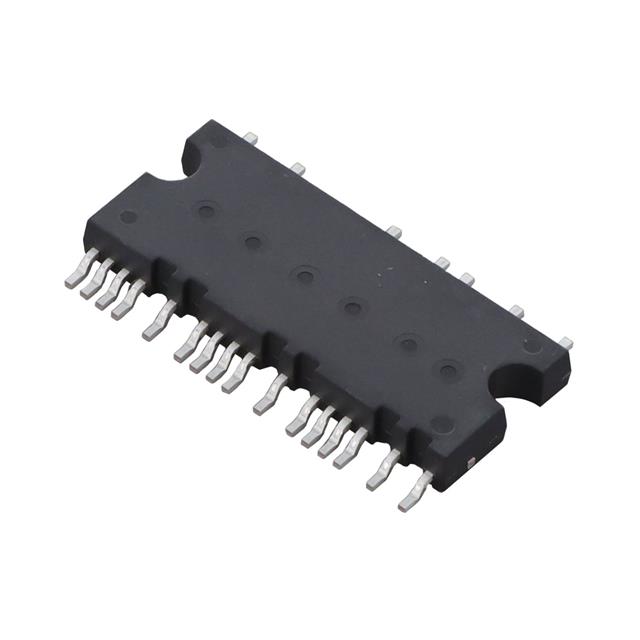

The Infineon IM241S6S1JAUMA1 is a CIPOS Micro intelligent power module featuring a 3-phase open emitter topology with reverse conducting IGBTs. It operates at a 600 V voltage class and supports a maximum collector current of 2 A. The device utilizes a surface-mount SOP 29x12 package with 29 pins. Key electrical parameters include a DC link supply voltage range of 0 to 400 V, a control supply voltage (VDD) of 13.5 V to 16.5 V, and an operating junction temperature range from -40°C to 150°C. It includes integrated bootstrap functionality, overcurrent shutdown, and a built-in NTC thermistor for thermal monitoring.

Feature Summary

• Integrates reverse conducting IGBT technology with rugged half-bridge drivers in a fully isolated SOP module.
• Provides precise overcurrent protection via the ITRIP pin and temperature feedback through the accessible NTC thermistor.
• Features programmable fault clear timers and shoot-through prevention with optimized dV/dt for EMI reduction.

Applications

• High-efficiency appliance motor drives
• Fan and pump systems
• Small home appliances

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm the exact package type and speed variant. Ensure that the component matches the required industrial qualification standards and RoHS compliance specifications before integration into the design.

Selection Notes

Select this module for applications requiring low EMI operation due to its slow switching speed variant. Confirm compatibility with 3.3 V or 5.0 V logic controllers and ensure the PCB layout accommodates the SOP 29x12 footprint and thermal requirements for the specified current ratings.

Part Context

This component belongs to the CIPOS Micro IM241 series, designed to integrate power and control components for system cost optimization. It is part of a family offering both fast (low loss) and slow (low EMI) speed versions in DIP and SOP configurations for various industrial motor drive needs.

Replacement Considerations

Direct substitutes within the same series include other variants of the IM241-S6S1x line, such as the IM241-S6S1B for low-loss applications. Verify pinout and thermal characteristics when considering cross-series replacements.

FAQ

What is the function of the RFE pin?

The RFE pin combines three functions: RC-network based programmable fault clear timer, fault output reporting, and enable input control.

How is the internal temperature monitored?

Temperature is monitored via the VTH pin, which provides direct access to an integrated NTC thermistor referenced to VSS.

What is the maximum short circuit withstand time?

The module can withstand a short circuit for up to 3 µs under conditions where VDD is 15 V, VDC is ≤ 400 V, and TJ is ≤ 150°C.
