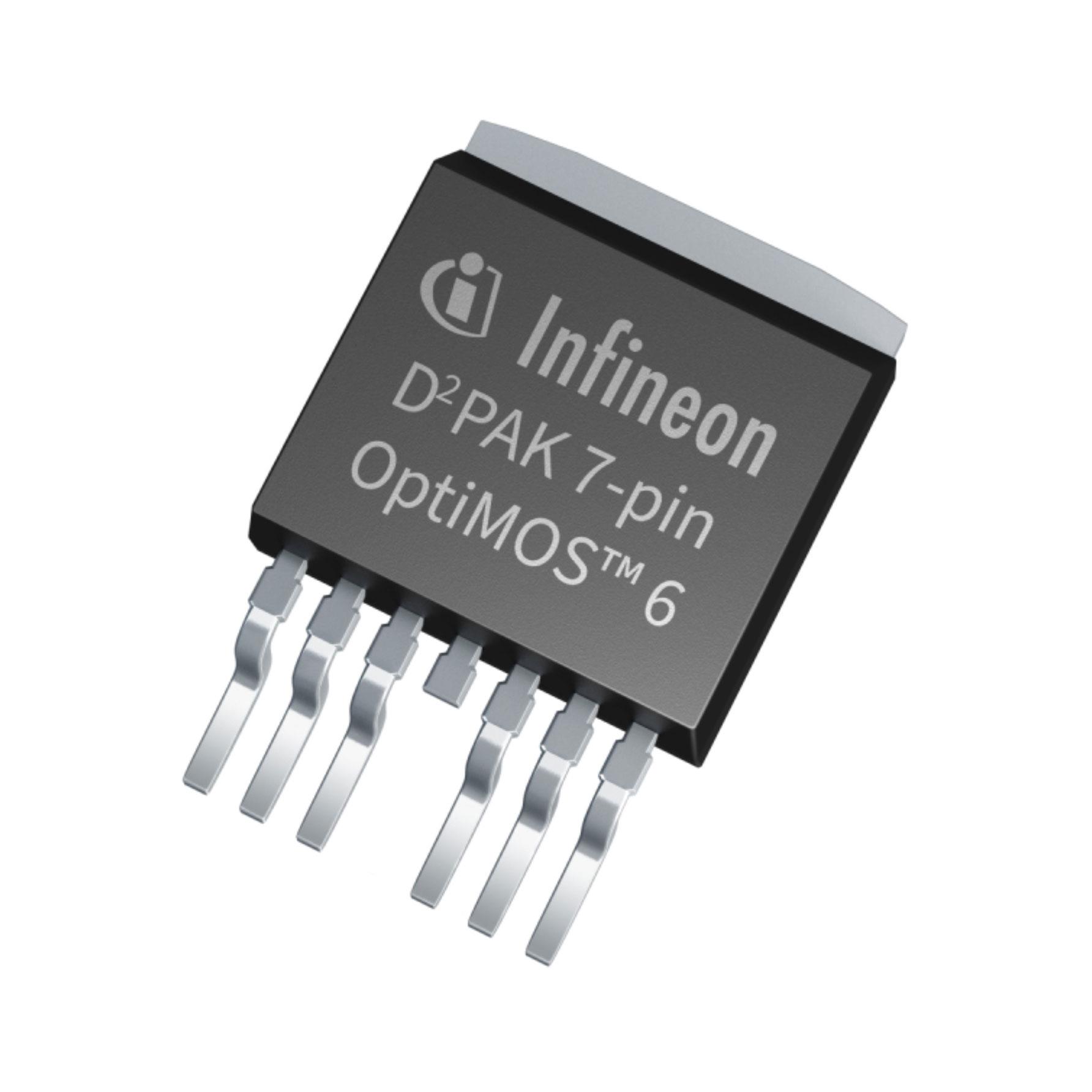

IPB180N03S4L01ATMA1

Description：MOSFET N-CH 30V 180A TO263-7
Series：OptiMOS™
Mfr：Infineon Technologies
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:abb866e67530 Category: Single FETs, MOSFETs Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

IPB180N03S4L01ATMA1 is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Infineon Technologies. Its product description is MOSFET N-CH 30V 180A TO263-7. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for IPB180N03S4L01ATMA1

Description：MOSFET N-CH 30V 180A TO263-7
Series：OptiMOS™
Mfr：Infineon Technologies
Package：Tape & Reel (TR),Cut Tape (CT)
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：30 V
Current - Continuous Drain (Id) @ 25°C：180A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
Rds On (Max) @ Id, Vgs：1.05mOhm @ 100A, 10V
Vgs(th) (Max) @ Id：2.2V @ 140µA
Gate Charge (Qg) (Max) @ Vgs：239 nC @ 10 V
Vgs (Max)：±16V
Input Capacitance (Ciss) (Max) @ Vds：17600 pF @ 25 V
FET Feature：-
Power Dissipation (Max)：188W (Tc)
Operating Temperature：-55°C ~ 175°C (TJ)
Grade：Automotive
Qualification：AEC-Q101
Mounting Type：Surface Mount
Supplier Device Package：PG-TO263-7-3
Package / Case：TO-263-7, D2PAK (6 Leads + Tab)

Single FETs, MOSFETs datasheet and documents for IPB180N03S4L01ATMA1

IPB180N03S4L01ATMA1

Single FETs, MOSFETs Overview

The IPB180N03S4L-01 is an N-channel enhancement mode OptiMOS-T2 power transistor in a PG-TO263-7-3 package. It features a drain-source voltage of 30 V and a typical on-state resistance of 1.05 mΩ at VGS=10V. The device supports a continuous drain current of 180 A and a pulsed current of 720 A. It operates up to 175°C junction temperature, has MSL1 classification for 260°C peak reflow, and is AEC qualified. Total power dissipation is 188 W at 25°C case temperature.

Single FETs, MOSFETs Feature Summary

AEC qualified automotive-grade reliability
Ultra-low on-state resistance for high efficiency
100% avalanche tested for robustness
Green RoHS compliant packaging

Single FETs, MOSFETs Applications

Automotive power management systems
DC-DC converter circuits
Motor control applications

Single FETs, MOSFETs Procurement Notes

Verify the specific ordering suffix matches the required tape-and-reel quantity and marking configuration. Confirm that the component meets the necessary AEC-Q101 standards for your target automotive application. Ensure thermal management designs account for the specified RthJC values to maintain safe operating temperatures during operation.

Single FETs, MOSFETs Selection Notes

Select this component for applications requiring low conduction losses and high current handling in a compact surface-mount package. Consider the gate charge characteristics for switching speed requirements. Evaluate the thermal resistance parameters against your PCB layout and cooling strategy to ensure adequate heat dissipation under maximum load conditions.

Single FETs, MOSFETs Part Context

This part belongs to Infineon's OptiMOS-T2 family, designed for low-voltage, high-current applications. The technology focuses on minimizing on-resistance while maintaining robust avalanche capability. It is engineered for automotive environments, offering high reliability and compliance with strict industry standards for electronic components used in vehicles.

Single FETs, MOSFETs Replacement Considerations

Check datasheets for alternative parts with compatible 30V rating, similar Rds(on), and PG-TO263-7-3 package. Verify pinout compatibility and thermal performance metrics before substitution.
