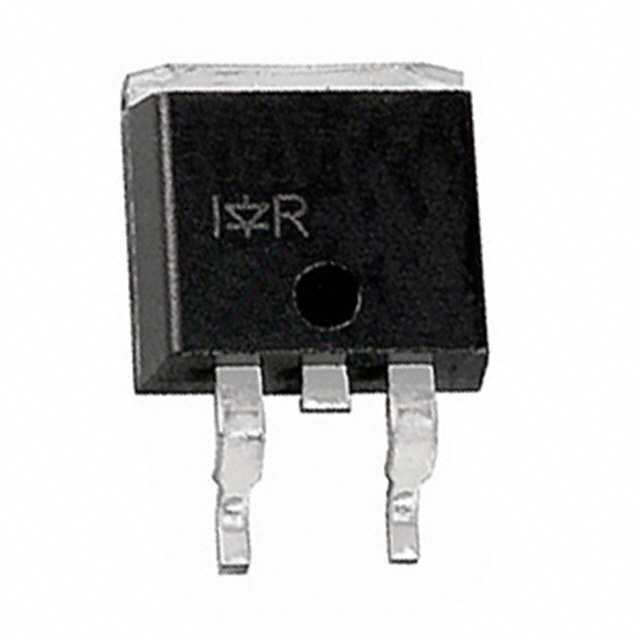

IRG4BC30FD-S

$1.69

Description：IGBT 600V 31A 100W D2PAK
Series：-

SKU:33c943dd653e Category: Single IGBTs Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT 600V 31A 100W D2PAK
Series：-
Mfr：Infineon Technologies
Package：Tube
IGBT Type：-
Voltage - Collector Emitter Breakdown (Max)：600 V
Current - Collector (Ic) (Max)：31 A
Current - Collector Pulsed (Icm)：120 A
Vce(on) (Max) @ Vge, Ic：1.8V @ 15V, 17A
Power - Max：100 W
Switching Energy：630µJ (on), 1.39mJ (off)
Input Type：Standard
Gate Charge：51 nC
Td (on/off) @ 25°C：42ns/230ns
Test Condition：480V, 17A, 23Ohm, 15V
Reverse Recovery Time (trr)：42 ns
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Surface Mount
Package / Case：TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Supplier Device Package：D2PAK
Grade：-
Qualification：-

Download product information

IRG4BC30FD-S

Overview

The IRG4BC30FD-S is a Fast CoPack IGBT featuring an integrated hyperfast diode, designed for medium power applications. It operates with a collector-to-emitter voltage of 600 V and supports continuous collector currents of 31 A at 25°C and 17 A at 100°C. The device utilizes a D2Pak package to minimize internal emitter inductance. Key electrical parameters include a maximum gate-to-emitter voltage of ±20 V, a typical total gate charge of 51 nC, and a maximum junction temperature of 150°C.

Feature Summary

Integrated hyperfast diode for efficient switching
D2Pak package with minimized internal emitter inductance
Fast CoPack technology for high efficiency

Applications

Medium power converters
High frequency inverters
Motor drives

Procurement Notes

Verify the exact suffix against official documentation to confirm lead-free status and specific thermal characteristics. Confirm that the component matches the required pinout and package dimensions for your PCB layout. Ensure compatibility with existing gate drive circuits regarding voltage thresholds and current requirements.

Selection Notes

Select this component based on its 600 V rating and current handling capabilities suitable for medium power designs. Consider the D2Pak package for its thermal performance and low inductance benefits. Evaluate the switching losses and diode recovery characteristics against system efficiency targets.

Part Context

This part belongs to Infineon's Fast CoPack IGBT series, which integrates a fast diode to reduce parasitic inductance. The D2Pak package provides a compact solution for surface mount applications requiring robust thermal management and high switching speeds.
