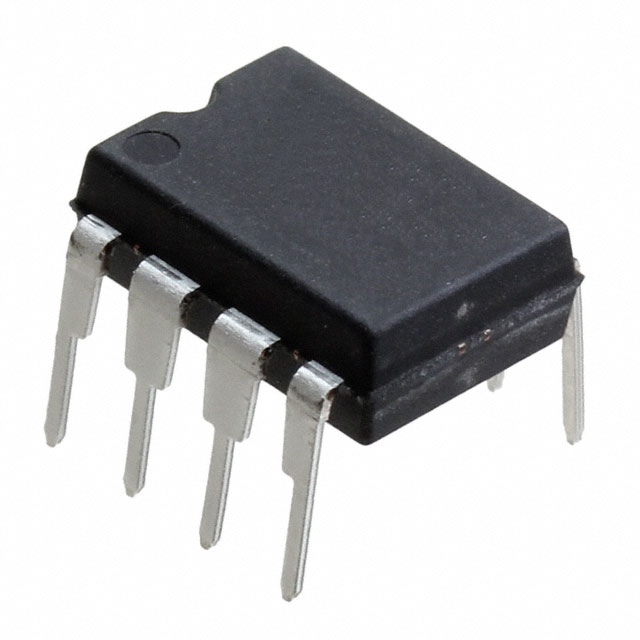

IRS25401PBF

Overview

The IRS25401PBF is a high-voltage half-bridge gate driver IC from Infineon Technologies, designed to drive external MOSFETs or IGBTs in half-bridge configurations. It operates with a supply voltage range of 8 V to 16.6 V and supports switching frequencies up to 500 kHz. The device features a robust output stage capable of delivering peak currents of 2 A source and 4 A sink. It includes integrated dead-time control, under-voltage lockout (UVLO), and thermal shutdown protection. Packaged in an 8-SOIC format, it ensures reliable performance across an operating temperature range of -25°C to +125°C.

Feature Summary

• Integrated half-bridge gate driver topology for high-side and low-side MOSFET/IGBT control
• Built-in dead-time management to prevent shoot-through conditions
• Comprehensive protection mechanisms including under-voltage lockout and thermal shutdown

Applications

• Universal AC-DC power supplies
• Induction heating systems
• Motor control applications

Procurement Notes

Verify component authenticity through authorized channels as the part may be discontinued. Confirm package integrity and moisture sensitivity level handling requirements prior to assembly. Cross-reference datasheet revisions to ensure compatibility with existing design specifications.

Selection Notes

Select this component for applications requiring isolated half-bridge driving with integrated protection. Ensure input voltage stays within the 8 V to 16.6 V range. Consider thermal management due to SOIC packaging limitations in high-power scenarios.

Part Context

Part of the IRS254xx series of high-voltage gate drivers. Shares functional similarities with IRS25401STRPBF but differs in packaging and mounting style. Designed for robust industrial and consumer power electronics environments.

Replacement Considerations

Check for direct substitutes like IRS25401STRPBF if surface-mount preference changes. Verify pin-out compatibility and electrical parameters before substitution.

FAQ

What is the maximum switching frequency supported by the IRS25401PBF?

The device supports switching frequencies up to 500 kHz.

Does the IRS25401PBF include internal protection features?

Yes, it includes under-voltage lockout (UVLO) and thermal shutdown protection.
