ISA11-3FBH-50.000MHZ

Oscillators Overview

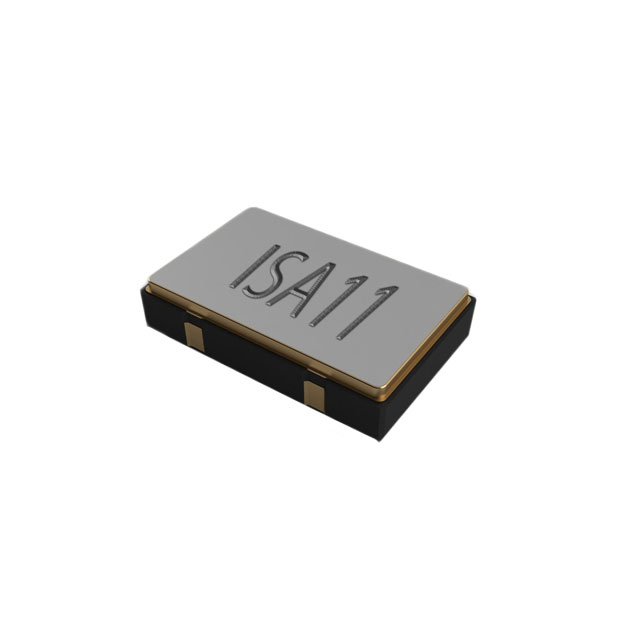

The ISA11-3FBH-50.000MHZ is a standard XO oscillator manufactured by ILSI, operating at a nominal frequency of 50 MHz. It utilizes LVCMOS logic levels and features an enable/disable function for power management. The device supports a supply voltage range of 2.97 V to 3.63 V with a typical value of 3.3 V. It offers a frequency stability of ±50 ppm and operates within a temperature range of -40°C to +85°C. The component is housed in a compact 4-SMD, no lead package measuring 2.0 mm x 1.6 mm x 0.8 mm.

Oscillators Feature Summary

• Supports enable and disable functionality for system power optimization
• Compatible with LVCMOS logic standards for digital interfacing
• Utilizes crystal base resonator technology for stable clock generation

Oscillators Applications

• General purpose system clocking
• Embedded digital circuits requiring precise timing
• Portable electronic devices with space constraints

Oscillators Procurement Notes

Verify the specific suffix against the manufacturer's current datasheet to confirm pinout compatibility and electrical characteristics. Ensure the selected variant matches the required operating temperature range and supply voltage specifications for the target application environment.

Oscillators Selection Notes

Select this component when a low-profile surface-mount oscillator is required for 50 MHz applications. Consider the ±50 ppm stability requirement and the 3.3 V supply constraint. The enable/disable feature makes it suitable for battery-powered systems requiring active power control.

Oscillators Part Context

This part belongs to the ISA series of oscillators from ILSI, designed for high-volume consumer and industrial electronics. The series emphasizes small form factors and low jitter performance. The ISA11 model specifically targets applications needing reliable clock signals in limited PCB real estate.

Oscillators Replacement Considerations

Cross-reference with other ILSI models in the ISA family for pin-compatible alternatives. Verify that substitute parts meet the same 2.0x1.6mm footprint and 3.3V operation requirements before integration.
