ISA16-32AH-24.000MHZ

Oscillators Overview

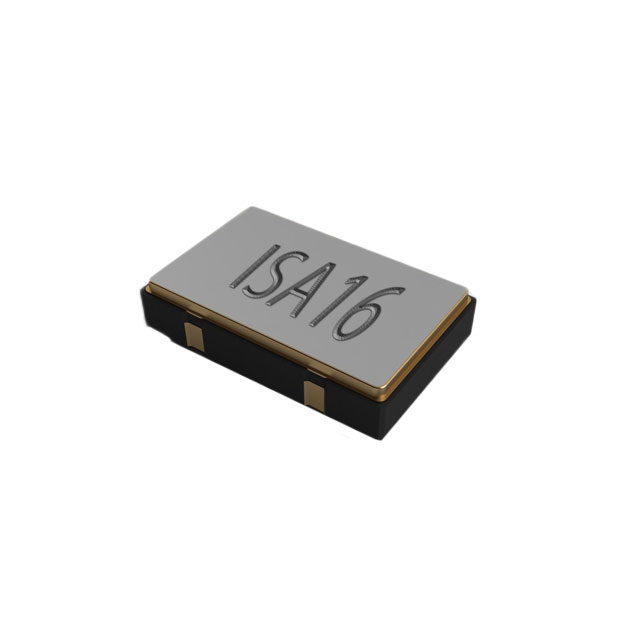

The ILSI ISA16-32AH-24.000MHZ is a standard crystal oscillator (XO) generating a 24 MHz output frequency. It operates on a 3.3V supply voltage and utilizes LVCMOS output logic levels. The device features an enable/disable function for power management control. It is housed in a compact 4-SMD, No Lead surface-mount package with dimensions of 3.2x2.5x1.1mm. The unit exhibits a frequency stability of ±25ppm over the specified temperature range and includes a load capacitance specification of 15pF.

Oscillators Feature Summary

• Provides stable 24 MHz clock signal generation via LVCMOS interface
• Integrates enable/disable functionality for efficient power management
• Designed for compact surface-mount assembly in space-constrained applications

Oscillators Applications

• Digital signal processing systems requiring precise timing references
• Communication equipment utilizing standard clock frequencies
• Embedded microcontroller boards needing reliable clock sources

Oscillators Procurement Notes

Verify component authenticity by checking manufacturer markings against official datasheet specifications. Ensure the part number matches exactly to confirm 24 MHz frequency and 3.3V operation. Request full lot documentation including RoHS compliance certificates upon shipment. Confirm packaging integrity to prevent damage to the small SMD footprint during transit.

Oscillators Selection Notes

Select this component when a fixed 24 MHz clock source is required with low power consumption capabilities. The LVCMOS output ensures compatibility with standard digital logic families operating at 3.3V. Consider the ±25ppm stability requirement against system timing tolerance needs. The enable pin allows dynamic power control, making it suitable for battery-operated devices requiring extended standby times.

Oscillators Part Context

This oscillator belongs to the ISA16-32AH series from ILSI, designed for general-purpose timing applications. The series offers various frequency options within a standardized small outline package. It serves as a direct replacement for legacy through-hole crystals in modern PCB designs where space efficiency and automated assembly are prioritized.

Oscillators Replacement Considerations

Direct substitutes include other 24 MHz LVCMOS oscillators in identical 3.2x2.5mm packages with matching 3.3V supply requirements. Verify that alternative parts support the same ±25ppm stability and enable/disable functionality to maintain circuit behavior without modification.
