ISL55016IRTZ-T7

Overview

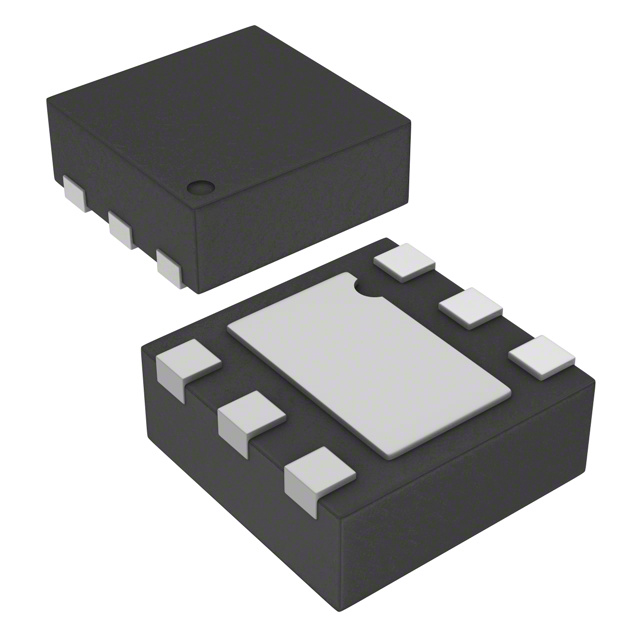

The ISL55016IRTZ-T7 is a high-performance MMIC silicon bipolar differential amplifier manufactured by Renesas Electronics Corporation. Designed for RF applications, it operates within a frequency range of 0 Hz to 2 GHz. The device provides a typical gain of 17.5 dB with a noise figure of 5.4 dB. It requires a supply current of 104 mA and is housed in a compact 6-WFDFN Exposed Pad package (1.6x1.6 mm). This component serves as a gain block capable of matching a 75Ω single-ended source to a 100Ω differential load.

Feature Summary

• High-performance MMIC silicon bipolar technology
• Capable of matching 75Ω single-ended sources to 100Ω differential loads
• Operates across a wide frequency range up to 2 GHz

Applications

• Bluetooth systems
• RF signal processing chains
• Differential amplification stages

Procurement Notes

Verify the exact part number suffix against official Renesas documentation to confirm package type and tape/reel specifications. Confirm RoHS compliance status through the manufacturer's latest datasheet or certification documents. Check product lifecycle status as this series may be subject to obsolescence notices. Ensure that the ordering information matches the specific variant required for your design implementation.

Selection Notes

Select this component when a differential output is required from a single-ended input within the 2 GHz bandwidth. Consider the 1.6x1.6 mm footprint for space-constrained designs. Evaluate the 104 mA supply current against power budget constraints. Verify impedance matching requirements between the 75Ω source and 100Ω differential load interfaces before integration.

Part Context

The ISL55016 belongs to the family of high-performance gain blocks from Renesas. It is specifically engineered for wireless communication applications requiring precise impedance transformation. The device utilizes silicon bipolar technology to deliver stable performance across the specified frequency range. It is distinct from other variants in the series by its specific packaging and interface characteristics.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult Renesas Electronics Corporation directly for recommended alternatives or end-of-life notifications. Cross-reference with similar differential amplifiers only if electrical parameters match exactly.
