ISL9R8120P2

Description：DIODE AVALANCHE 1200V 8A TO2202L
Series：Stealth™
Mfr：onsemi
Package：Tube

SKU:1af310618a55 Category: Single Diodes Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ISL9R8120P2 is listed in the Single Diodes range at ChipApex. The manufacturer field lists onsemi. Its product description is DIODE AVALANCHE 1200V 8A TO2202L. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for ISL9R8120P2

Description：DIODE AVALANCHE 1200V 8A TO2202L
Series：Stealth™
Mfr：onsemi
Package：Tube
Technology：Avalanche
Voltage - DC Reverse (Vr) (Max)：1200 V
Current - Average Rectified (Io)：8A
Voltage - Forward (Vf) (Max) @ If：3.3 V @ 8 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：300 ns
Current - Reverse Leakage @ Vr：100 µA @ 1200 V
Capacitance @ Vr, F：30pF @ 10V, 1MHz
Mounting Type：Through Hole

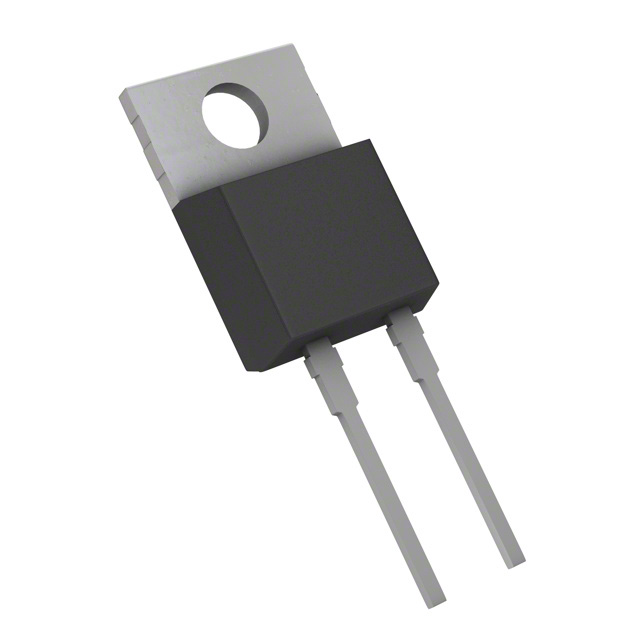

Package / Case：TO-220-2
Supplier Device Package：TO-220-2L
Operating Temperature - Junction：-55°C ~ 150°C
Grade：-
Qualification：-

Single Diodes datasheet and documents for ISL9R8120P2

ISL9R8120P2

Single Diodes Overview

The ISL9R8120P2 is an 8A, 1200V Stealth™ diode optimized for low loss performance in high frequency hard switched applications. It features a soft recovery characteristic with a t b / ta ratio greater than 5.5 and a fast reverse recovery time of less than 32ns. The device operates at temperatures up to 150°C and is avalanche energy rated.

Single Diodes Feature Summary

Soft recovery minimizes ringing and expands operating conditions without additional snubber circuitry
Fast recovery reduces switching losses in transistors
Avalanche energy rated for robust operation

Single Diodes Applications

Switch Mode Power Supplies
Hard Switched PFC Boost Diode
UPS Free Wheeling Diode
Motor Drive FWD
Snubber Diode

Single Diodes Procurement Notes

Verify the manufacturer origin as Fairchild Semiconductor or current successor entities. Confirm the package type matches TO-220AC specifications. Ensure the datasheet revision aligns with Rev. A standards for accurate electrical parameter validation.

Single Diodes Selection Notes

Select this component for designs requiring high voltage blocking capability combined with low reverse recovery charge. Evaluate thermal resistance requirements against the junction-to-case rating. Consider pairing with NPT IGBTs for optimal power density and efficiency in high-frequency switching environments.

Single Diodes Part Context

This part belongs to the Stealth™ diode family, designed specifically for high-frequency power conversion. It serves as a free-wheeling or boost diode in various power supply topologies. The technology focuses on reducing switching losses while maintaining reliability under hard-switched conditions.
