ISPLSI2064-100LTI

Overview

The ISPLSI2064-100LTI is a Complex Programmable Logic Device (CPLD) belonging to the ispLSI® 2000AFamily. It features 2,000 PLD gates and 64 macro cells, housed in an 84-pin Thin Quad Flatpack (TQFP) package. The device supports a maximum operating frequency of 81 MHz with a propagation delay of 10 ns. It utilizes E²CMOS technology for non-volatile storage and supports In-System Programming via JTAG.

Feature Summary

• Architecture: 2K Gates, 64 Macro Cells
• Performance: 81 MHz max frequency, 10 ns propagation delay

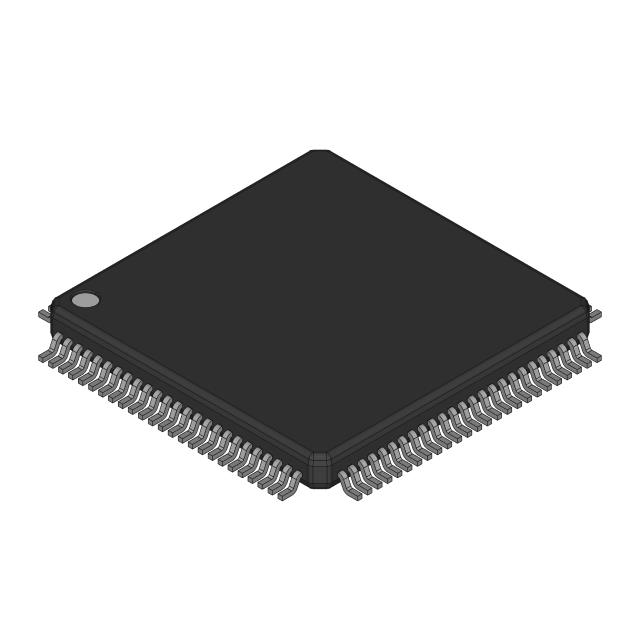

• Package: 84-TQFP (Thin Quad Flatpack)
• Technology: Non-volatile E²CMOS with ISP capability

Applications

• High-speed data bus interfacing
• Address decoding logic
• State machine implementation
• Glue logic replacement

Procurement Notes

Verify the specific suffix 'LTI' against official Lattice documentation to confirm the temperature range and package variant. Ensure compatibility with the programming toolchain, such as Diamond Programmer or Radiant Programmer, for the ispLSI 2000A family. Check for end-of-life status or obsolescence notices prior to procurement.

Selection Notes

Select this component when a non-volatile CPLD with 64 I/Os and high-speed performance is required. Compare against the ISPLSI2064A series for potential pin-compatible upgrades with improved timing specifications. Consider the TQFP package constraints for PCB layout and thermal management during selection.

Part Context

This part belongs to the Lattice ispLSI 2000A family, designed for high-density programmable logic applications. It serves as a successor to earlier GAL devices, offering reprogrammability and higher density while maintaining backward compatibility with standard JEDEC patterns for many functions.

Replacement Considerations

The ISPLSI2064A-100LTI is a functional equivalent within the same family. Verify if the 'A' suffix denotes updated manufacturing processes or minor parameter improvements over the base model.
