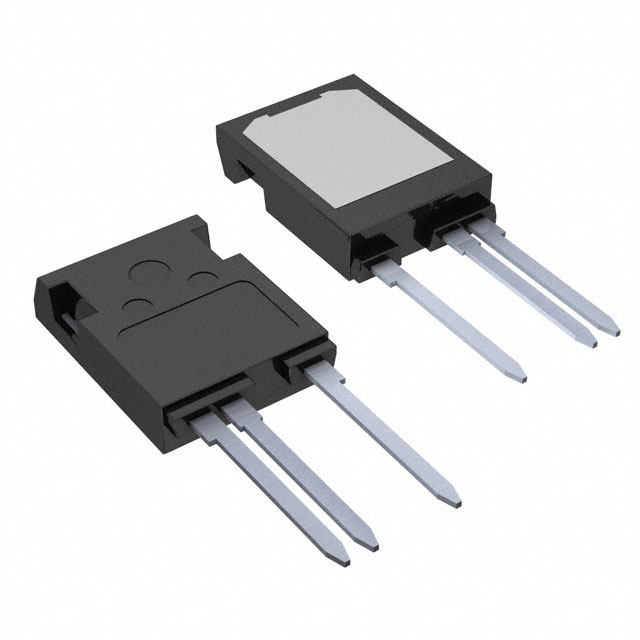

IXHX40N150V1HV

$50.89

Description：SCR 1.5KV TO247PLUS-HV
Series：-

SKU:1b3bcde0cf90 Category: SCRs Brand: IXYS

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：SCR 1.5KV TO247PLUS-HV
Series：-
Mfr：IXYS
Package：Tube
Voltage - Off State：1.5 kV
Voltage - Gate Trigger (Vgt) (Max)：-
Current - Gate Trigger (Igt) (Max)：-
Current - Hold (Ih) (Max)：-
Current - Non Rep. Surge 50, 60Hz (Itsm)：-
SCR Type：Standard Recovery
Operating Temperature：-55°C ~ 150°C
Grade：-
Qualification：-
Mounting Type：Through Hole
Package / Case：TO-247-3 Variant
Supplier Device Package：TO-247PLUS-HV
Voltage - On State (Vtm) (Max)：-
Current - On State (It (AV)) (Max)：-
Current - On State (It (RMS)) (Max)：-
Current - Off State (Max)：-

Download product information

IXHX40N150V1HV

Overview

The IXHX40N150V1HV is a 1500V MOS Gated Thyristor manufactured by IXYS. This component integrates an anti-parallel diode within its structure, combining the advantages of both MOSFET and IGBT technologies. It is designed for high-voltage applications requiring robust switching capabilities. The device features a specific gate control mechanism typical of MOS-controlled thyristors, allowing for efficient operation in power conversion systems.

Feature Summary

Integrates an anti-parallel diode for simplified circuit design
MOS-gated thyristor technology for controlled switching
High voltage rating suitable for demanding power applications

Applications

High voltage DC-DC converters
Induction heating systems
Uninterruptible power supplies (UPS)

Part Context

This component belongs to the family of MOS Gated Thyristors produced by IXYS Corporation. It shares functional similarities with other high-voltage devices like the IXHH40N150HV, which also features a 1500V rating and MOS gating. These devices are distinct from standard IGBTs or MOSFETs due to their hybrid conduction characteristics.
