Product Detailed Parameters
- Description：JFET P-CH 30V TO92
- Series：J176
- Mfr：Linear Integrated Systems, Inc.
- Package：Bulk
- FET Type：P-Channel
- Voltage - Breakdown (V(BR)GSS)：30 V
- Drain to Source Voltage (Vdss)：-
- Current - Drain (Idss) @ Vds (Vgs=0)：2 mA @ 15 V
- Current Drain (Id) - Max：-
- Voltage - Cutoff (VGS off) @ Id：1 V @ 10 nA
- Input Capacitance (Ciss) (Max) @ Vds：-
- Resistance - RDS(On)：250 Ohms
- Power - Max：350 mW
- Operating Temperature：-55°C ~ 135°C (TJ)
- Mounting Type：Through Hole
- Package / Case：TO-226-3, TO-92-3 (TO-226AA)
- Supplier Device Package：TO-92
- Grade：-
- Qualification：-
Download product information
Overview

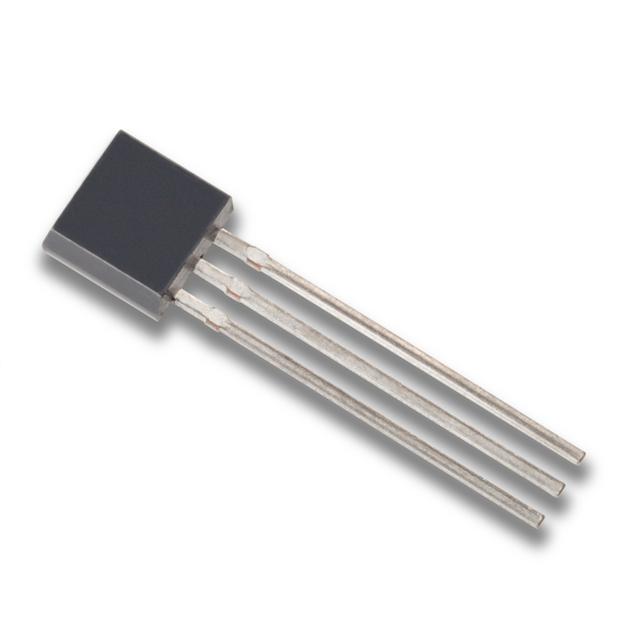

The J176 is a P-channel silicon small-signal Junction Field-Effect Transistor (JFET) manufactured by Linear Integrated Systems, Inc. It operates in depletion mode and features a single configuration within a TO-92 cylindrical package containing three terminals. The device is constructed with plastic/epoxy encapsulation and supports a maximum operating temperature of 135 °C. It complies with RoHS standards and is lead-free.
Feature Summary
- P-channel silicon construction for small-signal applications
- Depletion mode operation capability
- Symmetrical electrical characteristics
Applications
- Small-signal amplification circuits
- Analog switching applications
- Electronic load implementations
Procurement Notes
Verify the manufacturer designation matches Linear Integrated Systems or Analog Devices Inc., as production rights may have transferred. Confirm the specific suffix indicates compliance with current environmental directives. Ensure the TO-92 package dimensions align with the required PCB footprint constraints before finalizing procurement orders.
Selection Notes
Select this component when a P-channel JFET with symmetrical properties is required for low-power analog signal processing. The TO-92 package suits through-hole assembly processes. Evaluate thermal limits against the expected junction temperature to ensure reliable operation within the specified 135 °C maximum rating during continuous duty cycles.
Part Context
This component belongs to a series of P-channel silicon field-effect transistors that includes variants such as J174, J175, and J177. These devices share similar symmetrical operational characteristics but differ in packaging styles and specific thermal ratings. The J176 specifically utilizes the standard TO-92 form factor common in discrete semiconductor applications.
Replacement Considerations
The J175 is an official substitute within the same product specification family. Verify pinout compatibility and thermal dissipation requirements when substituting.
