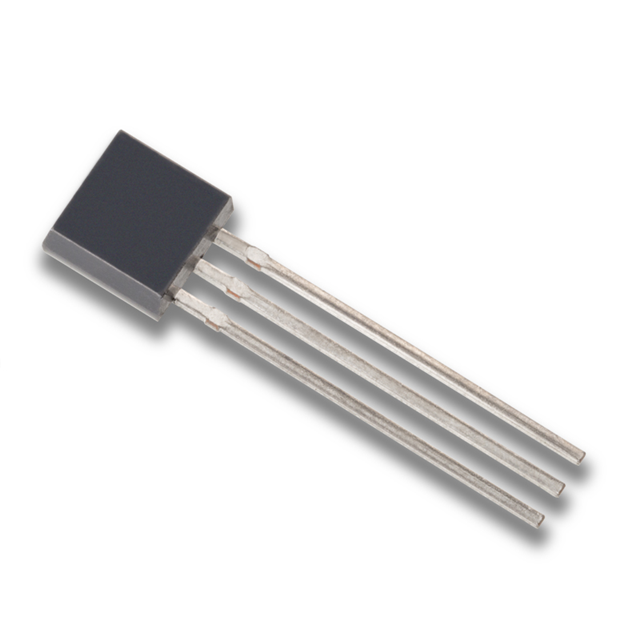

J309 TO-92 3L ROHS

$4.33

Description：JFET N-CH 25V TO92
Series：J309

SKU:b748022a68cc Category: JFETs Brand: Linear Integrated Systems, Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：JFET N-CH 25V TO92
Series：J309
Mfr：Linear Integrated Systems, Inc.
Package：Bulk
FET Type：N-Channel
Voltage - Breakdown (V(BR)GSS)：25 V
Drain to Source Voltage (Vdss)：-
Current - Drain (Idss) @ Vds (Vgs=0)：12 mA @ 10 V
Current Drain (Id) - Max：-
Voltage - Cutoff (VGS off) @ Id：1 V @ 1 nA
Input Capacitance (Ciss) (Max) @ Vds：4pF @ 10V
Resistance - RDS(On)：35 Ohms
Power - Max：350 mW
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Through Hole
Package / Case：TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package：TO-92
Grade：-
Qualification：-

Download product information

J309 TO-92 3L ROHS

Overview

The J309 is a silicon N-channel Junction Field-Effect Transistor (JFET) designed for UHF band applications. It operates in depletion mode and utilizes a TO-92 cylindrical plastic package with three through-hole terminals. Key electrical characteristics include a minimum drain-source breakdown voltage of 25 V and a maximum feedback capacitance of 2.5 pF. The device supports a maximum operating temperature of 125 °C.

Feature Summary

Designed for ultra-high frequency signal processing
Utilizes silicon junction FET technology
Operates in depletion mode

Applications

UHF band small signal amplification
RF circuit switching
Low noise signal processing

Procurement Notes

Verify the manufacturer designation, as the J309 part number has been associated with multiple vendors including Motorola/NXP and Fairchild. Confirm that the specific unit matches the required N-channel specification and TO-92 package style. Ensure compliance with RoHS standards if required by the application environment.

Selection Notes

Select this component for circuits requiring low feedback capacitance in the UHF range. The TO-92 package limits power dissipation capabilities compared to surface-mount alternatives. Verify that the 25 V breakdown voltage meets the circuit's peak voltage requirements.

Part Context

This component belongs to the family of small-signal RF transistors used in high-frequency analog circuits. It serves as a discrete active element for amplification or switching in radio frequency systems where low noise and fast response are critical.
