JAN1N1188

Single Diodes Overview

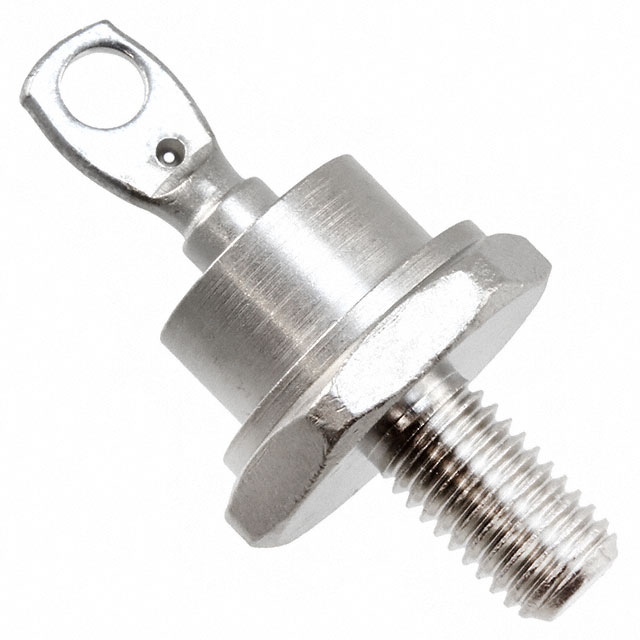

The JAN1N1188 is a military-grade standard rectifier diode manufactured by Microchip Technology. It features a maximum DC reverse voltage (Vr) of 50 V and an average forward rectified current (Io) of 3 A. The device utilizes a B, Axial package for through-hole mounting. Key electrical parameters include a maximum non-repetitive peak forward surge current of 100 A and a maximum DC forward voltage drop of 1.5 V at 9 A. The junction temperature range spans from -65°C to +175°C, ensuring reliability in demanding environments.

Single Diodes Feature Summary

• Military-grade construction compliant with MIL-PRF-19500/411 specifications
• High thermal stability supporting extended junction temperature ranges
• Robust surge current handling capability for transient protection

Single Diodes Applications

• Military aerospace power supply circuits
• Aviation electronic equipment rectification
• Defense system power management modules

Single Diodes Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact qualification levels and testing requirements. Ensure that the procurement channel provides valid traceability documentation required for military components. Confirm compliance with relevant export control classifications prior to purchase.

Single Diodes Selection Notes

Select this component when high-reliability rectification is required in harsh operational environments. The axial leaded package facilitates easy integration into traditional through-hole designs. Consider the 50 V reverse voltage rating to ensure adequate margin for the specific circuit application.

Single Diodes Part Context

This part belongs to the 1N118x series of standard rectifier diodes produced by Microchip Technology. The JAN prefix indicates a specific military qualification level within this product family, distinguishing it from commercial variants while maintaining similar fundamental electrical characteristics.
