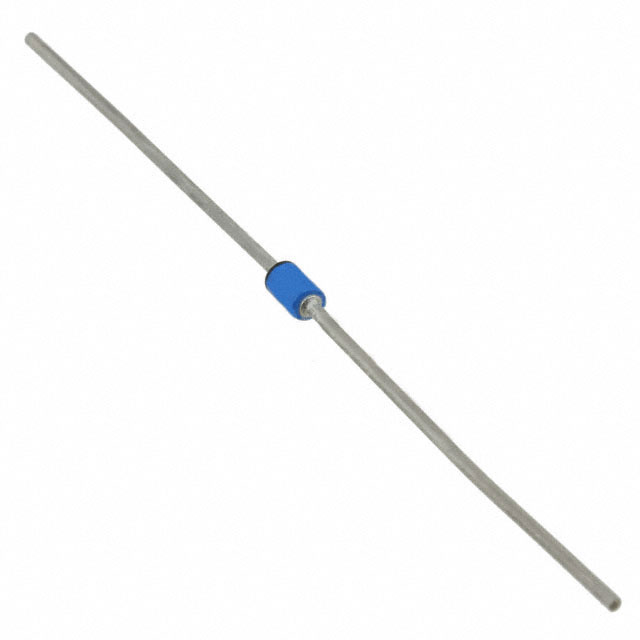

JAN1N4245

$2.64

Description：DIODE STANDARD 200V 1A AXIAL
Series：-
Mfr：Microchip Technology
Package：Bulk

SKU:19fad4bfefab Category: Single Diodes Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

JAN1N4245 is listed in the Single Diodes range at ChipApex. The manufacturer field lists Microchip Technology. Its product description is DIODE STANDARD 200V 1A AXIAL. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for JAN1N4245

Description：DIODE STANDARD 200V 1A AXIAL
Series：-
Mfr：Microchip Technology
Package：Bulk
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：200 V
Current - Average Rectified (Io)：1A
Voltage - Forward (Vf) (Max) @ If：1.3 V @ 3 A
Speed：Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)：5 µs
Current - Reverse Leakage @ Vr：1 µA @ 200 V
Capacitance @ Vr, F：-
Mounting Type：Through Hole
Package / Case：A, Axial
Supplier Device Package：A, Axial
Operating Temperature - Junction：-65°C ~ 175°C
Grade：Military
Qualification：MIL-PRF-19500/286

Single Diodes datasheet and documents for JAN1N4245

JAN1N4245

Single Diodes Overview

The JAN1N4245 is a standard recovery rectifier diode manufactured by Microchip Technology. It features a maximum repetitive peak reverse voltage of 200 V and an average forward rectified current of 1 A. The device utilizes a glass-passivated silicon junction for high reliability. Key electrical characteristics include a maximum reverse leakage current of 1 µA at 200 V and a typical forward voltage drop of 1.3 V at 3 A. The component is designed for through-hole mounting in an axial package, with a specified junction temperature range from -65°C to +175°C.

Single Diodes Feature Summary

High-reliability glass-passivated silicon junction construction
Qualified per MIL-PRF-19500/286 military specifications
Voidless hermetically sealed packaging for harsh environments

Single Diodes Applications

Military aerospace electronic systems
High-reliability industrial power supplies
Avionics rectification circuits

Single Diodes Procurement Notes

Verify the specific suffix against the official datasheet to confirm compliance with MIL-PRF-19500/286 standards. Ensure the ordering information matches the required military grade and hermetic sealing specifications. Confirm RoHS status as these components may not be compliant. Validate the manufacturer source to ensure authenticity.

Single Diodes Selection Notes

Select this component when military-grade reliability and hermetic sealing are required. Compare the 200 V reverse voltage rating against circuit requirements. Consider the 1 A current capacity and axial package constraints. Verify thermal management needs within the -65°C to +175°C operating range.

Single Diodes Part Context

This part belongs to the JAN series of rectifiers, which are qualified under military standards. It shares the base 1N4245 electrical profile but includes enhanced manufacturing controls for defense applications. The series is distinct from commercial variants by its hermetic seal and rigorous testing protocols.
