JAN1N5614

$3.58

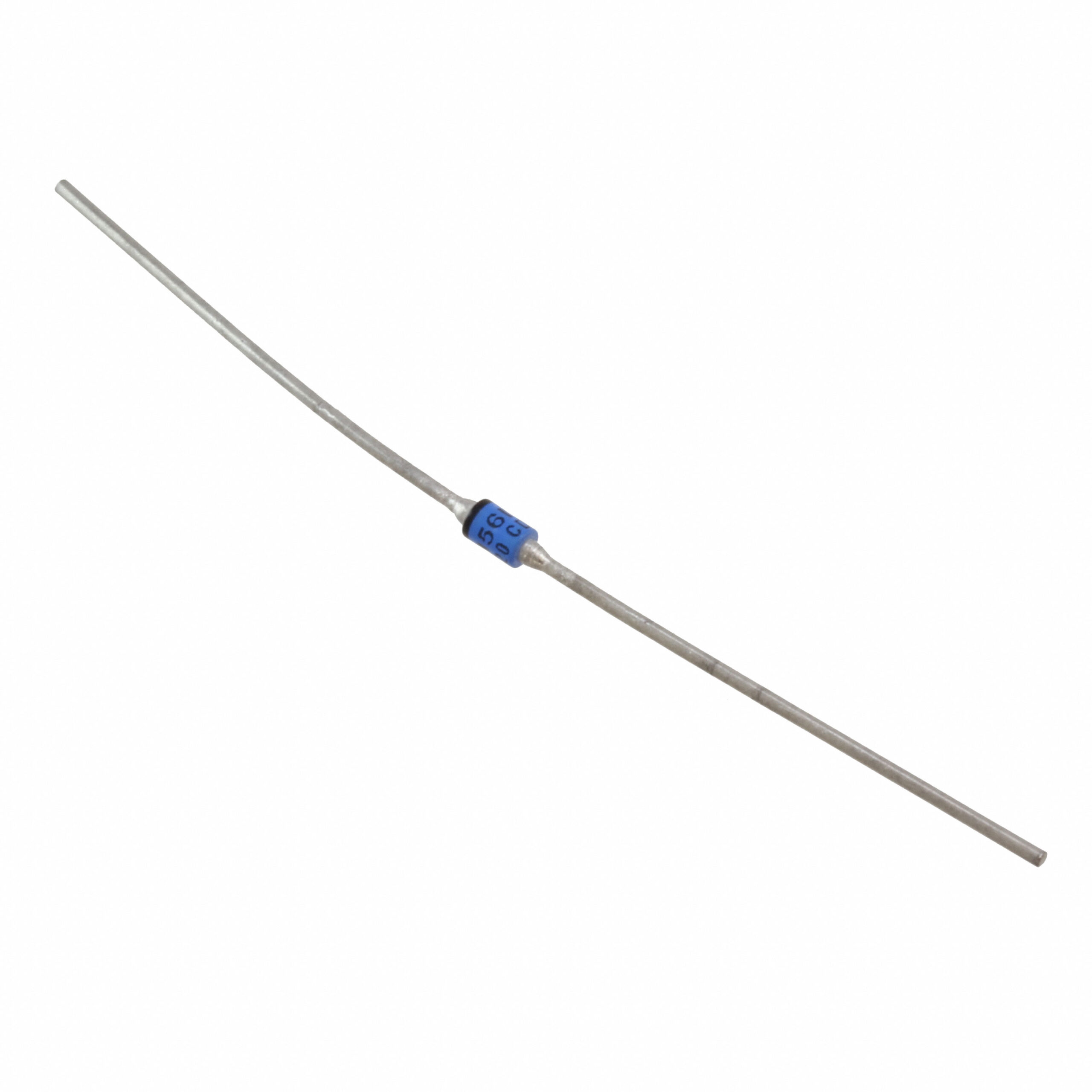

Description：DIODE STANDARD 200V 1A AXIAL
Series：-
Mfr：Microchip Technology
Package：Bulk

SKU:b4c57ef65fbe Category: Single Diodes Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

JAN1N5614 is listed in the Single Diodes range at ChipApex. The manufacturer field lists Microchip Technology. Its product description is DIODE STANDARD 200V 1A AXIAL. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for JAN1N5614

Description：DIODE STANDARD 200V 1A AXIAL
Series：-
Mfr：Microchip Technology
Package：Bulk
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：200 V
Current - Average Rectified (Io)：1A
Voltage - Forward (Vf) (Max) @ If：1.3 V @ 3 A
Speed：Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)：2 µs
Current - Reverse Leakage @ Vr：500 nA @ 200 V
Capacitance @ Vr, F：-
Mounting Type：Through Hole
Package / Case：A, Axial
Supplier Device Package：A, Axial
Operating Temperature - Junction：-65°C ~ 200°C
Grade：Military
Qualification：MIL-PRF-19500/427

Single Diodes datasheet and documents for JAN1N5614

JAN1N5614

Single Diodes Overview

The JAN1N5614 is a military-qualified standard recovery rectifier diode manufactured by Microchip Technology. It features a 200 V DC reverse voltage rating and supports a 1 A average forward current. The device utilizes hermetically sealed voidless-glass construction with an internal Category I metallurgical bond, ensuring high reliability for critical applications. It operates within a junction temperature range of -65°C to +200°C and exhibits a maximum reverse leakage current of 500 nA at rated voltage.

Single Diodes Feature Summary

Military qualified to MIL-PRF-19500/427 standards for high-reliability environments
Hermetically sealed voidless-glass construction with internal metallurgical bond
Standard recovery performance suitable for general-purpose rectification

Single Diodes Applications

High-reliability aerospace systems
Military electronic equipment
Critical infrastructure power supplies

Single Diodes Procurement Notes

Verify the specific revision level and lot traceability documentation upon receipt to ensure compliance with MIL-PRF-19500/427 requirements. Confirm that the component retains its hermetic seal integrity during handling and installation. Cross-reference the manufacturer's latest Product Change Notifications to validate material consistency and assembly site origins before final integration into sensitive designs.

Single Diodes Selection Notes

Select this component when military-grade qualification and extreme temperature tolerance are mandatory. The wide operating temperature range up to +200°C distinguishes it from commercial equivalents. Ensure the circuit design accommodates the standard recovery characteristics rather than requiring fast-switching capabilities. Validate that the axial leaded package fits the available board space and mounting constraints.

Single Diodes Part Context

This part belongs to the 1N5614 through 1N5622 series of industry-recognized 1.0 Amp rated rectifiers. The series covers working peak reverse voltages from 200 to 1000 volts. While other variants in the family offer different voltage ratings or surface mount MELF configurations, the JAN1N5614 specifically provides the 200 V rating in a through-hole axial package with military certification.
