Product Detailed Parameters
- Description：SCR 200V TO-208AA
- Series：-
- Mfr：Microsemi Corporation
- Package：Bulk
- Voltage - Off State：200 V
- Voltage - Gate Trigger (Vgt) (Max)：3 V
- Current - Gate Trigger (Igt) (Max)：35 mA
- Current - Hold (Ih) (Max)：50 mA
- Current - Non Rep. Surge 50, 60Hz (Itsm)：-
- SCR Type：-
- Operating Temperature：-65°C ~ 125°C (TJ)
- Grade：-
- Qualification：-
- Mounting Type：Stud Mount
- Package / Case：TO-208AA, TO-48-3, Stud
- Supplier Device Package：TO-208AA (TO-48)
- Voltage - On State (Vtm) (Max)：-
- Current - On State (It (AV)) (Max)：-
- Current - On State (It (RMS)) (Max)：-
- Current - Off State (Max)：-
Download product information
Overview

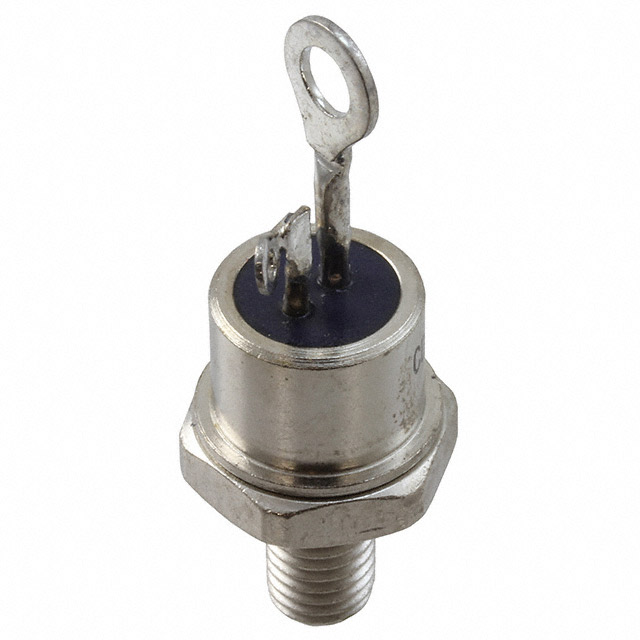

The JANTX2N685 is a reverse blocking power triode thyristor manufactured by Microsemi Corporation. It is housed in a TO-208AA (TO-48) stud mount package and operates with a maximum off-state voltage of 200 V. The device features a maximum gate trigger voltage of 3 V and a maximum gate trigger current of 35 mA. This component is designed for high-reliability applications requiring robust switching capabilities within its specified electrical limits.
Feature Summary
- Reverse blocking power triode thyristor configuration
- Stud mount construction for thermal management
- High reliability design for specialized environments
Applications
- Power control systems
- Industrial switching applications
- Military and aerospace electronics
Procurement Notes
Verify the current product status, as this component may be classified as obsolete or end-of-life. Confirm availability through authorized distributors or direct manufacturer channels. Ensure that any substitute components meet the same electrical specifications and mechanical form factors to maintain system integrity and compliance with original design requirements.
Selection Notes
Select this component when a 200 V reverse blocking thyristor is required in a TO-208AA package. Consider the gate trigger parameters for driver circuit compatibility. Evaluate thermal dissipation needs based on the stud mount design. Verify that the application environment aligns with the component's intended use cases and reliability standards.
Part Context
This part belongs to the Microsemi/JAN series of military-grade semiconductor devices. These components are typically designed to meet stringent quality and reliability standards for defense and aerospace applications. The JAN prefix indicates adherence to specific military performance criteria, ensuring consistent operation under harsh conditions compared to commercial equivalents.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult official Microchip/Microsemi resources for potential cross-reference options or updated product line replacements if this specific model is discontinued.
