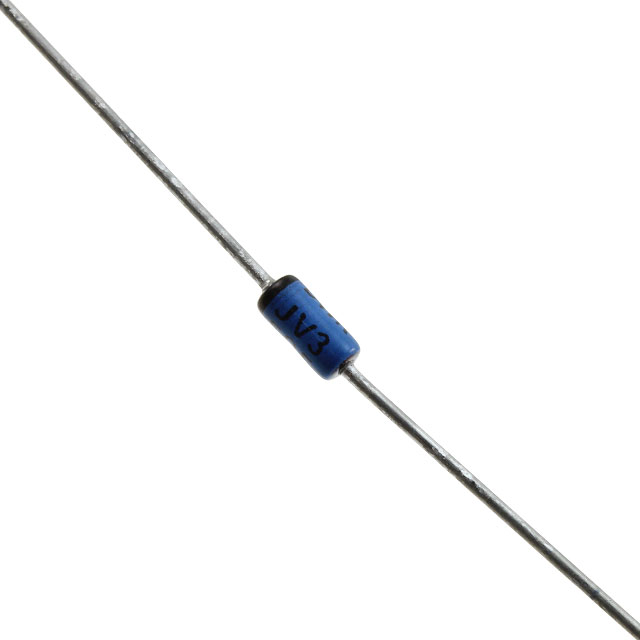

JANTXV1N3595-1 is listed in the Single Diodes range at ChipApex. The manufacturer field lists Microchip Technology. Its product description is DIODE STD 125V 150MA DO204AH. Review the specifications below when checking this part for your BOM.
Single Diodes specifications for JANTXV1N3595-1
- Description：DIODE STD 125V 150MA DO204AH
- Series：-
- Mfr：Microchip Technology
- Package：Bulk
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：125 V
- Current - Average Rectified (Io)：150mA
- Voltage - Forward (Vf) (Max) @ If：1 V @ 200 mA
- Speed：Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr)：3 µs
- Current - Reverse Leakage @ Vr：1 nA @ 125 V
- Capacitance @ Vr, F：-
- Mounting Type：Through Hole
- Package / Case：DO-204AH, DO-35, Axial
- Supplier Device Package：DO-204AH (DO-35)
- Operating Temperature - Junction：-65°C ~ 175°C
- Grade：Military
- Qualification：MIL-PRF-19500/241
Single Diodes datasheet and documents for JANTXV1N3595-1
Single Diodes Overview
The JANTXV1N3595-1 is a silicon low-leakage signal or computer diode manufactured by Microchip Technology. It is designed for high-reliability applications and complies with the MIL-PRF-19500/241J specification, superseding earlier versions like MIL-PRF-19500/241H. The device features controlled forward voltage characteristics and is available in various package styles including through-hole DO-35 and surface-mount configurations depending on the specific suffix variant.
Single Diodes Feature Summary
- Complies with MIL-PRF-19500/241J military performance specification
- Features low leakage current characteristics suitable for precision circuits
- Offers controlled forward voltage types for consistent switching performance
Single Diodes Applications
- Military aerospace electronic systems
- High-reliability computer logic circuits
- Signal rectification in harsh environments
Single Diodes Procurement Notes
Verify that the ordering suffix matches the required physical package style, as the base part number spans multiple form factors. Confirm that the revision level meets the MIL-PRF-19500/241J standard rather than older superseded specifications. Ensure the manufacturer source is authorized to provide components meeting these rigorous qualification requirements.
Single Diodes Selection Notes
Select this component when strict adherence to military reliability standards is mandatory. Consider the specific package variant required for the assembly process, whether through-hole or surface mount. Evaluate the low leakage and controlled forward voltage parameters against circuit sensitivity requirements to ensure optimal signal integrity in critical applications.
Single Diodes Part Context
This device belongs to the 1N3595 series of silicon signal diodes produced under military quality controls. The series includes variants such as 1N3595-1, 1N3595US, and 1N3595UR-1, all governed by the same core performance specification. The JANTXV designation indicates a specific temperature range and reliability tier within this family.
