JEBT-4R2G+

Overview

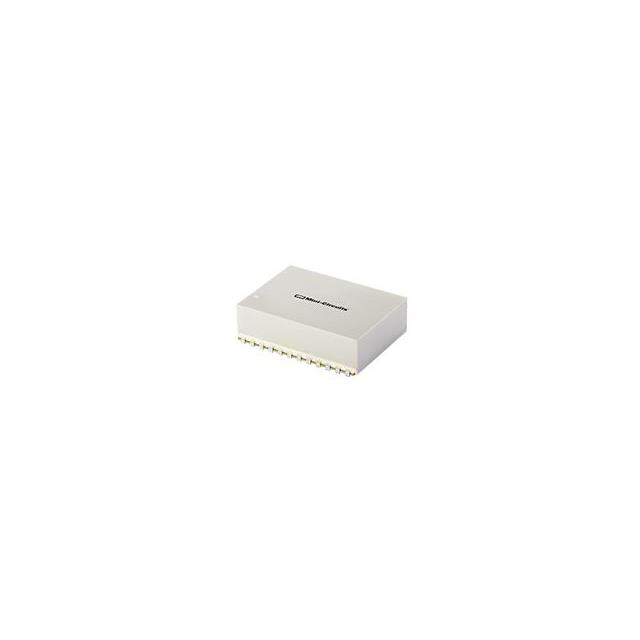

The JEBT-4R2G+ is a surface-mount bias-tee manufactured by Mini-Circuits. It operates within a frequency range of 10 MHz to 4200 MHz and features a 50 Ohm impedance. The component supports up to 30 dBm of power handling capacity. Designed for compact integration, it complies with RoHS and REACH standards. This device provides low insertion loss for applications over a very wide frequency range.

Feature Summary

• Provides DC biasing while passing RF signals without interference
• Surface-mount package design for automated assembly
• Low insertion loss characteristics across the operational bandwidth

Applications

• RF circuit biasing in communication systems
• Test and measurement equipment signal conditioning
• Wireless infrastructure component integration

Procurement Notes

Verify the specific ordering suffix against official Mini-Circuits documentation to ensure correct package type and compliance status. Confirm that the required frequency range and power handling specifications align with the 10 MHz to 4200 MHz operational limits and 30 dBm power rating defined in the datasheet before procurement.

Selection Notes

Select this component when a surface-mount solution is required for biasing RF lines between 10 MHz and 4.2 GHz. Ensure the application environment accommodates the specified 30 dBm power limit. Consider the physical footprint constraints of the SMT package relative to the PCB layout requirements.

Part Context

This part belongs to the Mini-Circuits bias-tee family, designed for RF and microwave applications. It serves as a passive component to separate or combine DC and RF signals. The JEBT variant specifically denotes a surface-mount technology implementation suitable for modern high-density electronic assemblies.

Replacement Considerations

The ZFBT-4R2G+ is a coaxial version with similar electrical performance but different packaging. Verify mechanical fit and interface requirements when considering substitutes from the same manufacturer.
