K50-HC0CSE29.4989MR

Oscillators Overview

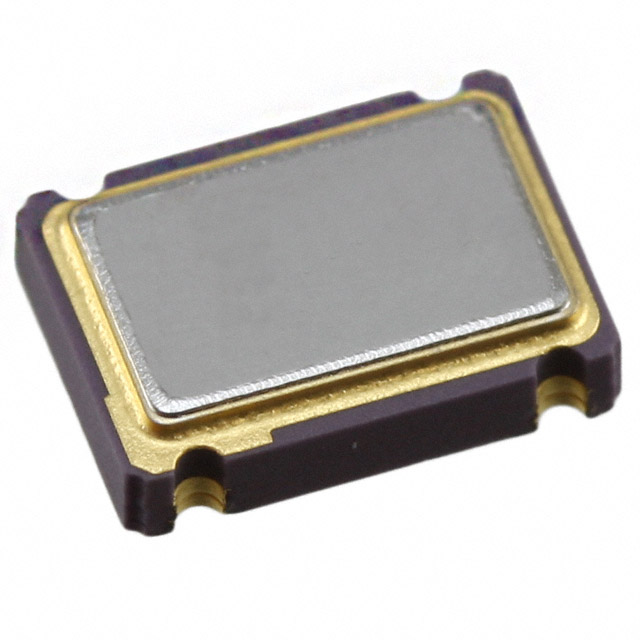

The K50-HC0CSE29.4989MR is a standard clock oscillator manufactured by KYOCERA AVX, designed for surface-mount technology applications. It operates at a nominal frequency of 29.4989 MHz with a frequency stability of ±50 ppm. The device utilizes CMOS output format and requires a supply voltage range between 3 V and 3.6 V. It features an enable/disable function controlled via the input pin. The component is housed in a 4-SMD, no-lead package measuring 7 mm x 5 mm, suitable for automated PCB assembly.

Oscillators Feature Summary

• Provides stable clock signals with high reliability using a ceramic SMD package
• Includes enable/disable functionality for power management and system control
• Supports CMOS output format for direct interface with digital logic circuits

Oscillators Applications

• Network routers and switches requiring precise timing synchronization
• Server infrastructure components needing stable clock sources
• Embedded systems utilizing CMOS-compatible logic interfaces

Oscillators Procurement Notes

Verify the specific part number against official KYOCERA AVX documentation to confirm current production status and availability. Ensure that the required operating temperature range and supply voltage specifications align with the target application design constraints before procurement.

Oscillators Selection Notes

Select this component when a 29.4989 MHz clock signal with ±50 ppm stability is required. Consider the 7 mm x 5 mm footprint and CMOS output compatibility. Evaluate the enable/disable feature needs for system power efficiency compared to continuous operation alternatives.

Oscillators Part Context

This oscillator belongs to the K50 series of surface-mount crystal oscillators from KYOCERA AVX. The series offers various frequencies and stability options, commonly used in telecommunications and computing equipment where precise timing is critical for data integrity and system synchronization.

Oscillators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer guidelines for cross-reference information if alternative sourcing is necessary.
