Overview

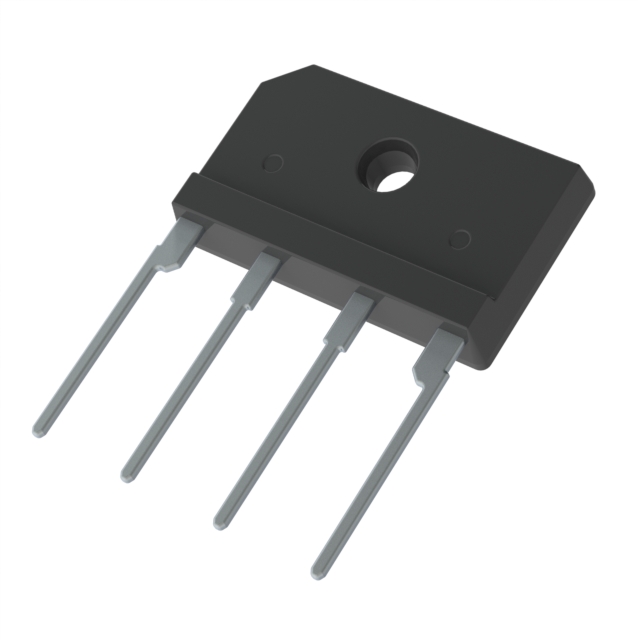

The KBJ1510_T0_00601 is a glass passivated single-phase bridge rectifier manufactured by Panjit International Inc. It features a maximum average forward rectified current of 15 A and a maximum repetitive peak reverse voltage of 1000 V. The device supports a peak forward surge current of 240 A under an 8.3 ms single half sine-wave condition. Electrical characteristics include a maximum instantaneous forward voltage of 1.1 V at 15 A and a typical junction capacitance of 79 pF. Operating and storage temperature ranges extend from -55°C to +150°C.

Feature Summary

• Glass passivated chip junction for enhanced reliability
• Plastic case with Underwriters Laboratory Flammability Classification 94V-O
• Lead-free construction compliant with EU RoHS 2.0 directive

Applications

• Printed circuit board mounting
• General purpose power supply circuits
• Industrial equipment rectification

Procurement Notes

Verify the specific ordering suffix against official Panjit documentation to confirm packaging type, such as bulk or tape and reel configurations. Ensure compliance requirements match project specifications, particularly regarding UL recognition file E228882 and material flammability ratings. Cross-reference datasheet revision dates to validate electrical parameter accuracy before finalizing component selection.

Selection Notes

Select this component for applications requiring high voltage blocking capability up to 1000 V combined with a 15 A continuous current rating. Evaluate thermal resistance values based on the intended heatsinking method, distinguishing between PCB-mounted and aluminum plate installations. Confirm that the operating junction temperature range meets the environmental demands of the target system design.

Part Context

This part belongs to the KBJ1504 through KBJ1510 series of glass passivated bridge rectifiers. All variants in the series share identical mechanical dimensions and current ratings, differing only in their maximum repetitive peak reverse voltage ratings. The KBJ1510 represents the highest voltage option within this specific lineup.

Replacement Considerations

Direct substitutes must maintain the 15 A current rating and 1000 V reverse voltage specification. Verify that alternative components utilize the same KBJ package style and meet equivalent UL safety standards.
