KBJB1010_T0_00301

$1.42

Description：GLASS PASSIVATED LOW PROFILE BRI
Series：-

SKU:32838dd2bac0 Category: Bridge Rectifiers Brand: Panjit International Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：GLASS PASSIVATED LOW PROFILE BRI
Series：-
Mfr：Panjit International Inc.
Package：Tube
Diode Type：-
Technology：-
Voltage - Peak Reverse (Max)：-
Current - Average Rectified (Io)：-
Voltage - Forward (Vf) (Max) @ If：-
Current - Reverse Leakage @ Vr：-
Operating Temperature：-
Mounting Type：-
Package / Case：-
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

KBJB1010_T0_00301

Overview

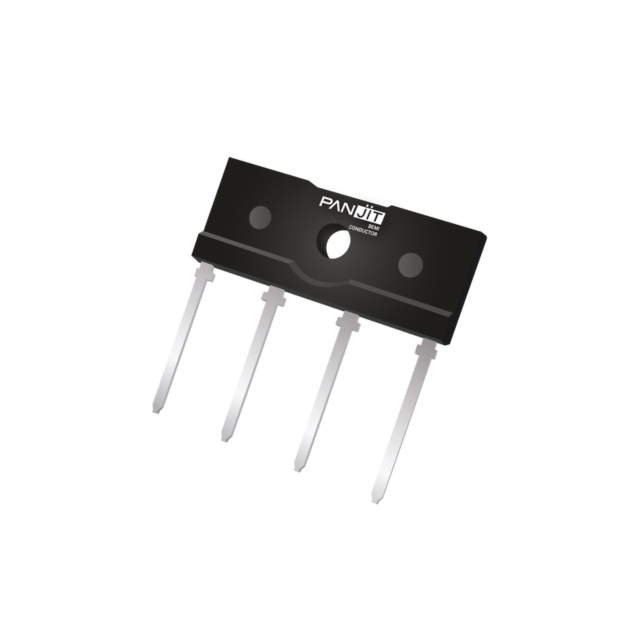

The KBJB1010 is a glass passivated low profile bridge rectifier manufactured by Panjit International Inc. It features a single-phase bridge configuration housed in the KBJB package, designed for through-hole mounting. The device supports a maximum repetitive peak reverse voltage of 1000 V and a maximum average forward current of 10 A with a heatsink. Key electrical parameters include a peak forward surge current of 220 A at 8.3 ms, a typical junction capacitance of 70 pF, and a maximum reverse current of 5 uA at 25 °C. The component operates within a temperature range of -55 °C to +150 °C.

Feature Summary

Glass passivated chip junction construction
Thin single in-line package design
High surge current capability

Applications

Slim Adapter Power
Game Console Power
TV Power

Procurement Notes

Verify the specific ordering suffix against official documentation to ensure correct packaging and marking specifications. Confirm that the requested quantity aligns with the standard tube packing format of 20 pieces per tube as defined in the product data sheet. Ensure compliance with RoHS and halogen-free requirements during procurement planning.

Selection Notes

Select this component when a 1000 V rating and 10 A continuous current capacity are required for low-profile applications. Consider the thermal resistance values and derating curves if operating without an external heatsink, where the current limit drops significantly. Verify that the KBJB package dimensions fit the target PCB layout constraints.

Part Context

This part belongs to the KBJB series of glass passivated bridge rectifiers from Panjit. The series is characterized by its low profile form factor and high surge current handling capabilities. It is distinct from other Panjit bridge rectifier families such as GBJA or HULV due to its specific package type and current ratings.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Cross-referencing requires matching the 1000 V reverse voltage, 10 A forward current, KBJB package outline, and pinout configuration.
