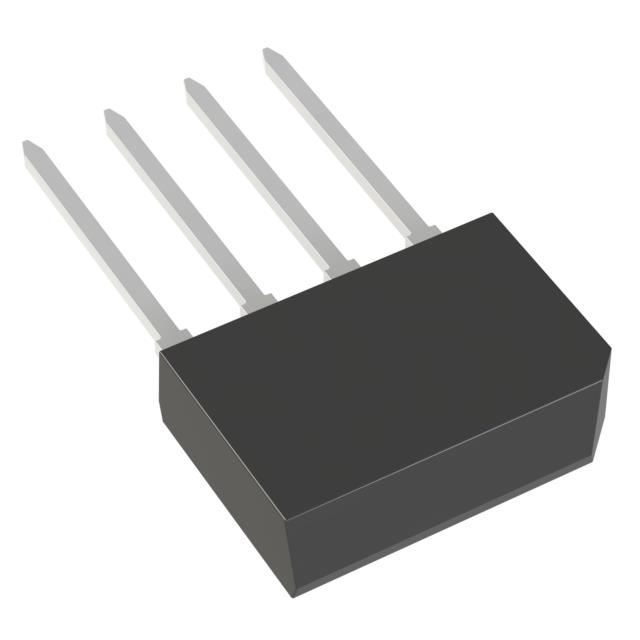

KBP210GS-BP

Overview

The KBP210GS-BP is a single-phase bridge rectifier manufactured by Micro Commercial Components (MCC). It features a peak repetitive reverse voltage of 1000 V and an average forward rectified current of 2 A. The device utilizes the KBPR through-hole package, supporting a junction temperature range from -55°C to 150°C. Key electrical characteristics include a maximum forward voltage drop of 1.1 V at 2 A and a reverse leakage current of 5 µA at 200 V. This component is designed for general-purpose rectification applications requiring robust performance in standard configurations.

Feature Summary

• Single-phase bridge rectifier configuration
• Through-hole KBPR package installation
• High junction temperature capability up to 150°C
• Standard technology construction

Applications

• General-purpose AC to DC power supply rectification
• Industrial control circuit power stages
• Consumer electronics power adapters

Procurement Notes

Verify component authenticity against official MCC datasheets. Confirm package integrity and marking legibility upon receipt. Ensure storage conditions maintain moisture sensitivity level 1 compliance. Cross-reference ordering suffixes with manufacturer documentation to validate specific variant attributes before integration into production workflows.

Selection Notes

Select this component when a 2 A current rating and 1000 V blocking voltage are required in a compact through-hole form factor. Evaluate thermal management requirements based on the specified junction temperature limits. Compare forward voltage drop specifications against system efficiency targets. Ensure PCB layout accommodates the KBPR footprint dimensions and pin spacing constraints.

Part Context

This part belongs to the KBP210GS series within the MCC diode portfolio. It shares the KBPR package style with other variants in the family, differing primarily in voltage and current ratings. The series provides standardized solutions for low-to-medium power rectification needs across various electronic equipment categories.

Replacement Considerations

Direct substitutes may include other 2 A, 1000 V bridge rectifiers in the KBPR package. Verify pinout compatibility and thermal characteristics before substitution. Consult manufacturer cross-reference lists for confirmed equivalent parts.
