Product Detailed Parameters

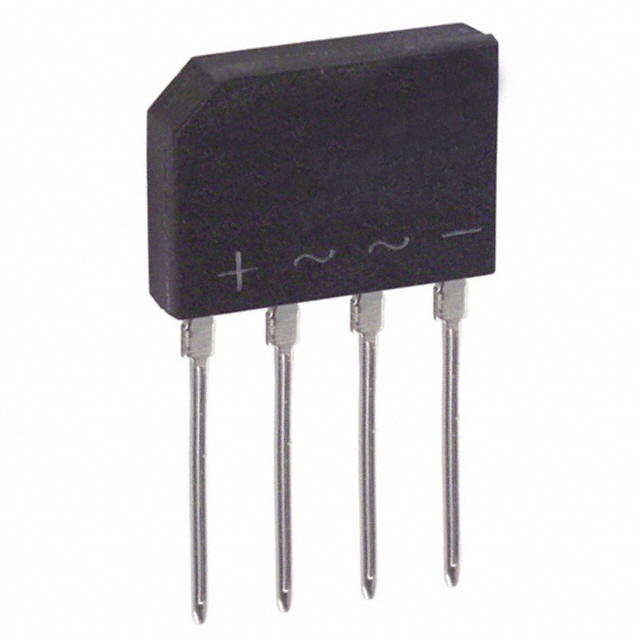

- Description：BRIDGE RECT 1PHASE 1KV 2A KBP
- Series：-
- Mfr：Panjit International Inc.
- Package：Tube
- Diode Type：Single Phase
- Technology：Standard
- Voltage - Peak Reverse (Max)：1 kV
- Current - Average Rectified (Io)：2:00 AM
- Voltage - Forward (Vf) (Max) @ If：1.1 V @ 2 A
- Current - Reverse Leakage @ Vr：5 µA @ 1000 V
- Operating Temperature：-55°C ~ 150°C (TJ)
- Mounting Type：Through Hole
- Package / Case：4-ESIP, KBP
- Supplier Device Package：KBP
- Grade：-
- Qualification：-
Download product information
Overview
The KBP2MI_T0_00101 is a single-phase bridge rectifier manufactured by Panjit International Inc. It features a peak reverse voltage rating of 1 kV and an average rectified current capacity of 2 A. The device exhibits a low forward voltage drop and utilizes a through-hole mounting type for secure circuit integration. Reverse leakage current is specified at 5 µA when measured at 1000 V. This component is designed for efficient AC to DC conversion in electronic power supply applications.
Feature Summary
- Single-phase bridge rectifier configuration for AC to DC conversion
- High surge current capability with robust construction
- Low forward voltage drop for improved efficiency
- Through-hole mounting for reliable mechanical attachment
Applications
- General purpose power supply circuits
- AC to DC converter modules
- Battery charging systems
- DC power adapter designs
Procurement Notes
Verify the specific ordering suffix and package variant against the official Panjit datasheet to ensure compatibility with existing board layouts. Confirm that the component meets all required electrical specifications for the target application before finalizing procurement orders.
Selection Notes
Select this component for applications requiring a 1 kV reverse voltage rating and 2 A continuous current handling. Ensure the through-hole footprint matches the PCB design constraints. Consider thermal management requirements due to power dissipation during operation.
Part Context
This part belongs to Panjit's general-purpose rectifier lineup, specifically engineered for standard power conversion tasks. It provides a reliable solution for converting alternating current to direct current in various consumer and industrial electronic devices requiring moderate current levels.
Replacement Considerations
Check for obsolescence status as some sources indicate scheduled discontinuation. Identify equivalent single-phase bridge rectifiers with matching 1 kV and 2 A ratings from other manufacturers if this part becomes unavailable.
