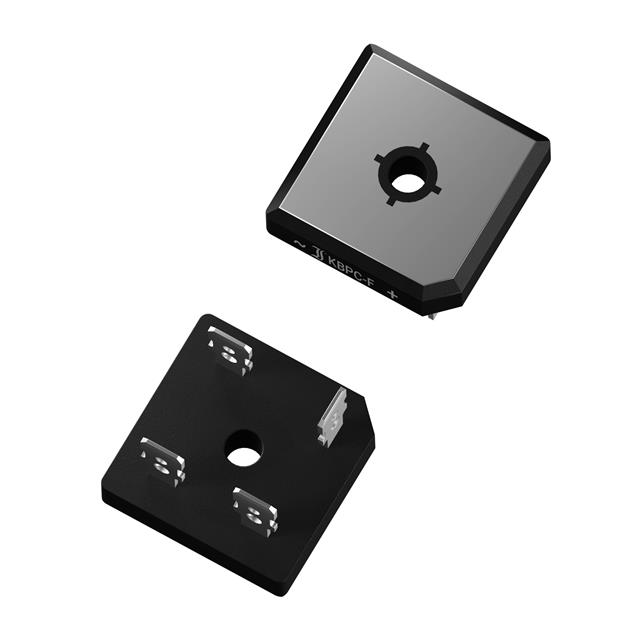

KBPC3510FP

$3.22

Description：BRIDGE RECT 1P 1KV 35A KBPC35
Series：-

SKU:5f54af824e86 Category: Bridge Rectifiers Brand: Diotec Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：BRIDGE RECT 1P 1KV 35A KBPC35
Series：-
Mfr：Diotec Semiconductor
Package：Box
Diode Type：Single Phase
Technology：Standard
Voltage - Peak Reverse (Max)：1 kV
Current - Average Rectified (Io)：35 A
Voltage - Forward (Vf) (Max) @ If：1.1 V @ 17.5 A
Current - Reverse Leakage @ Vr：10 µA @ 1000 V
Operating Temperature：-50°C ~ 150°C (TJ)
Mounting Type：Chassis Mount
Package / Case：4-Square, KBPC35
Supplier Device Package：KBPC35
Grade：-
Qualification：-

Download product information

KBPC3510FP

Overview

The KBPC3510FP is a single-phase diode bridge rectifier manufactured by Diotec Semiconductor. It features a repetitive peak reverse voltage (VRRM) of 1000 V and a maximum average forward rectified current (IFAV) of 35 A at a case temperature of 55°C. The device utilizes fast-on terminals for mounting and incorporates an isolated aluminum baseplate within its plastic housing. Electrical characteristics include a typical reverse recovery time of 1500 ns, a maximum instantaneous forward voltage drop below 1.1 V, and a peak forward surge current capability of 400 A at 60 Hz.

Feature Summary

Four diodes integrated in a bridge configuration with UL recognition
Plastic case construction featuring an isolated aluminum baseplate
Fast-on terminal design compatible with 6.3mm connectors

Applications

50/60 Hz mains rectification
Commercial power supplies
Industrial grade equipment

Procurement Notes

Verify the specific ordering suffix to confirm terminal type and compliance status. The FP suffix indicates Fast-on terminals suitable for 6.3mm connectors or solder assembly. Confirm RoHS exemption details under category 7a-I and REACH compliance requirements before finalizing procurement specifications.

Selection Notes

Select this component based on the required 1000 V blocking voltage and 35 A continuous current rating. Ensure the application environment allows for adequate heatsinking, as the rated current depends on maintaining a case temperature of 55°C. Verify that the 1500 ns reverse recovery time meets the frequency requirements of the target circuit.

Part Context

This component belongs to the KBPC series of single-phase bridge rectifiers from Diotec Semiconductor. The series spans various voltage ratings from 100 V to 1600 V while maintaining a consistent 35 A current capacity. The KBPC3510FP specifically addresses high-voltage AC-to-DC conversion needs in standard commercial and industrial environments.

Replacement Considerations

Compatible substitutes within the same family include KBPC3508FP (800 V) and KBPC3512FP (1200 V). These parts share identical mechanical dimensions and thermal characteristics, allowing for direct pin-compatible replacement if voltage margins permit.
